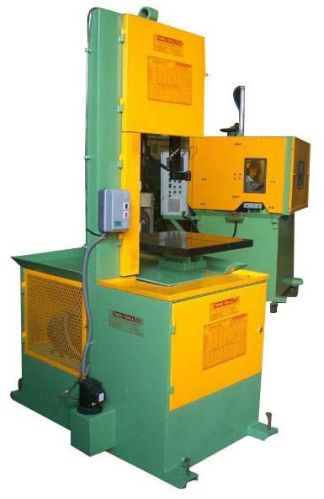

Contact SupplierWe are offering Manual Feeder Vertical Bandsaw Machine (VCM-350). Our Manual Feeder Vertical Bandsaw Machine is a fully closed machine with a small sheet shield for optimum safety. The Manual Feeder Vertical Bandsaw Machine is well-equipped with energy efficient motor that consumes less power with current 2.2 kWh level. Our Manual Feeder Vertical Bandsaw Machine is designed with auto coolant flow system and adjustable heavy duty movable blade guide. In addition to this, it features chip brushing of blade and chip filtering system.
Features
Machine Dimension | |
Length | 1250 MM |
Width | 900 MM |
Height | 2230 MM |
Machine Electrical Equipment | |
Supply Voltage | ~3 x 415V, 50Hz, TN-C-S |
Protection Degree | IP 54 |
Driving Engine of the Band Saw & Coolant | |
Type | ~3 x 415V, 50Hz |
Out Put (Drive) | 2 HP |
Out Put (Coolant) | 0.18 HP |
Saw Band Dimension | |
4100(Length) MM X 27/34(Width) MM X 0.9(Thickness) MM | |
Work Station Dimension | |
Length x Width | 550MM x 550MM |
Height from floor | 935 MM |
