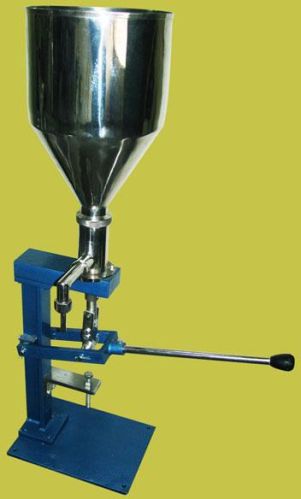

Contact SupplierWe are offering manual cream filling machine. Manual hand operated paste filling machine model aehpf series can also called by many names such as tube filling machine, cream filling machine, curd filling machine, mehandi filling machine, chuna filling machine, fevicol filling machine, adhesive filling machine, gel filling machine etc, since almost all types of semi liquids pasty materials can be filled by using this machine. A very well known machine in all packaging industry. This machine is proven and manufactured for decades, since this is the basic paste filling machine which has the ability to fill any semi liquids accurately. Compact and easy operating and low maintenance makes this machine the winner among all the filling machines.
Brief about the product:
this is the basic and proved machine for paste or tube filling industry. Very widely used and famous among small and medium production industry. Hand operated paste filling machine is very economical, easy to operate and easy to maintain type. Any semi-liquids and pasty materials, like cream, pastes, gel, ketchup, and other same kind materials can be easily filled accurately by using this machine. Table top model which requires less space to fit and start the production. Inbuilt hopper and operating handle completes this machine for taking production.
Machine structure and working:
machine base and main structure is made from cast steel which is machined and duly powder coated to get the finish. There are parts like hopper and operating lever, fill barrel, nozzle, and adjustment screw are present in all machines.
There is a strong hopper provided with required volume capacity as per material. Small models comes with moving hopper and bigger models comes with steady hopper. The hopper is made from stainless steel 304 as per specification.
Fill barrel is another main part in this machine. This is also made from stainless steel. The inside of each barrel is ground to get mirror finish. barrel design is done as per fill volume requirements. The barrels are available in 15gms, 25gms, 50gms, 100gms, 150gms, 250gms, and also 500gms. The piston is a specially designed one, which does suction and filling in one stroke. fill nozzles are welded to the barrel. The mouth of nozzle is maintained towards down to fill smoothly into containers or tubes below the fill barrel.
Specifications;
• machine model: aehpf50
• machine type: hand operated paste filling machine
• machine dimensions: 8” w x 10” b x 24” l
• machine weight: 20 kgs.
• packing size: 10” x 12” x 25”h
• gross weight: 35 kgs.
• packing: wooden box.
• fill range: 5gms- 50gms as per barrel capacity
• fill capacity: up to 20 fills per minute as per operator skill.
• hopper capacity: 15 liters.
• all material contact parts are made in stainless steel 304 316 as per specifications.
• bigger models available on request up to 500gms.
• steady hopper for bigger models.
• motorised machines also available on request.
uses:
most suitable for mehandi, cream, curd, fevicol, pastes, adhesives, gels, and any other herbal, chemical, cosmetic pastes.
