Electroperm Heavy Duty Chuck for Quard Pole

Electroperm Heavy Duty Chuck for Quard Pole

Listing ID #1319541

1.10 Lakh / Set
Get Latest Price
  • MOQ As per requirement
  • ApplicationIndustry
  • TypeMagnetic Separator
  • PowerElectric
  • Magnet GradeN35,n52,n42,n40,n38
  • Vertical Lifting Force40 Kg
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Uptech Engineering verified-icon
Alandi, Pune, Maharashtra
View Number
  • Member Since 21 Years
  • Nature of Business Retailer
  • GST No. 27ANLPS2142M1ZJ

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

We are bracketed among the reliable Manufacturers, Suppliers and Exporters of Electroperm Heavy Duty Chuck for Quard Pole from Maharashtra. Heavy Duty Chuck we make available is suitable for light milling i.e. 3 to 6mm depth of cut at recommended speed and feed. One can obtain the Heavy Duty Chucks at nominal rates.

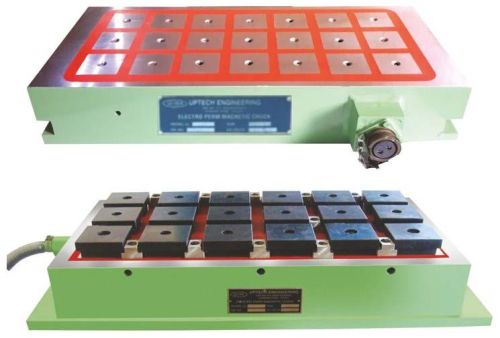

"Ultra" Brand Electroperm Heavy Duty Chuck (70 x 70) quard Pole :

  • Work holding device for conventional & CNC milling m/c.
  • Cold Device as it doesn't require power continuously except for short period of activation & deactivation.
  • Suitable for light milling i.e. 3-6 mm depth of cut at recommended speed & feed.
  • Maximum material removal is possible.
  • Economical for operation & maintenance.
  • No accidents due to power failure.
  • Slippering force is 2.5 - 3.5 kg/cm2.
  • Vertical Lifting Force is 40 - 45 kg/cm2.
  • Variable supply unit to vary power which helps in alignment of jobs.
  • Chuck is tested for slippering force, Waterproof test, Electrical & Demagnetizing tests.
  • Standard electrical accessories.
  • We also manufacture special chucks to suit individual requirement


Specifications

Cat No.

Size (mm)

UL - 71901

600 L x 320 W x 80 H

UL - 71902

750 L x 320 W x 90 H

UL - 71903

1000 L x 320 W x 90 H

UL - 71904

1500 L x 320 W x 90 H

UL - 71905

600 L x 410 W x 80 H

UL - 71906

750 L x 410 W x 90 H

UL - 71907

1000 L x 410W x 90 H

UL - 71908

1500 L x 410W x 90 H

UL - 71909

410L x 410W x 80 H

UL - 71910

800 L x 410W x 90 H

UL - 71911

1000L x 500W x 90 H

"Ultra" Control Unit with variable Supply

"Ultra" Pole Extention block

Special "Ultra" Pole Extention Block

"Ultra" Spring Pole Extention Block
