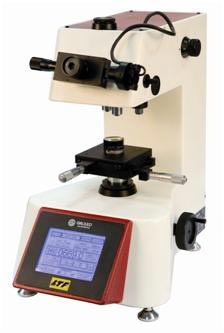

Macro Vickers Hardness Tester 002

Listing ID #1397279

Macro Vickers Hardness Tester with 002 item code finds its application in diverse industries. Digital Auto Turret Macro Vickers Hardness Tester, offered by us, has microscope with light intensity adjustment. Moreover, our Macro Vickers Hardness Tester has built-in motorized load application device. Along with all these features, we provide Macro Vickers Hardness Tester that can automatically correct measurements on the cylindrical and spherical work pieces as per high industrial standards.
Brief Description Of Our Macro Vickers Hardness Tester

• Handy-placed knob load selector, with following standard test loads : 10 â�� 25 â�� 50 â�� 100 â�� 200 â�� 300 â�� 500 - 1000 gf (0, 09807, - 0,2452, - 0,4903, - 0,9807, - 1,961, - 2,942, - 4,903, - 9,807 N)
• Microscope with light intensity adjustment
• Motorized rotary turret with 5 positions adapting the indenter and two objectives (10X and 40X provided with the instrument) (other magnification objectives and Knoop indenters can be ordered separately)
• 10X digital micrometric eyepiece featuring 0,01 µm resolution, calibrated for the use of both 10X and 40X objectives
• Motorized load application device
• Automatic test cycle
• Color touch screen LCD provided with alphanumerical readout and practical, quick and easy-to-use graphics
• Software guide to correct configuration in the various scales
• Possibility to save/retrieve test batches on external devices such as USB key and/or LAN company networks
• Software for the calculation of statistical parameters, such as average value, standard deviation, maximum and minimum values and number of measurements with indication of out-of-tolerance values, date, work piece No., batch No., histogram with indication of +/- 3 sigma, line chart with indication of the test trend
• Automatic software updates via USB key
• Automatic conversion of the values measured in the various hardness scales: Rockwell, Brinell, Knoop, Vickers as well as tensile strength according to either â��Galileo conversion tablesâ�� or ISO 18265 standards
• Automatic correction of measurements on the cylindrical and spherical work pieces as per ISO 6507 or ASTM standards on request
• Maximum work piece height 85 mm
• Throat depth 110 mm
