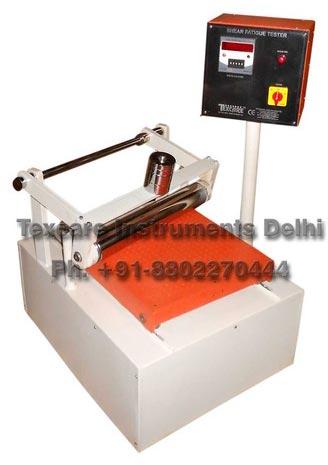

Electric 10-50kg Shear Fatigue Tester, Voltage : 110V

Listing ID #1439223

Shear Fatigue Tester determines the ability of polyurethane foam slabs to withstand repeated compressions. In the test the polyurethane foam slab is placed on a flat platform and is pressed down by horizontal cylindrical rollers at angle of 15 degree. We are counted amongst the best Manufacturers, Suppliers and Exporters of Shear Fatigue Tester from New Delhi. The Shear Fatigue Tester has an electronic counter, which records all the tests results and automatically stops the motor at the end.
Technical Specification :

• Size of Test Specimen : 380 x 380 mm
• Flexing Frequency : 28 CPM
• Stroke Length of platform : 330 mm
• Diameter of Hole on Platform : 6 mm
• Distance between holes : 19 mm
• Diameter of Roller: 75 mm
• Angle of inclination : 15 deg.
• Length of Roller : 460 mm
• Power : AC 220 V 50Hz.

Related Standards : IS 7888 1976, ASTM D 3574 - 1986
