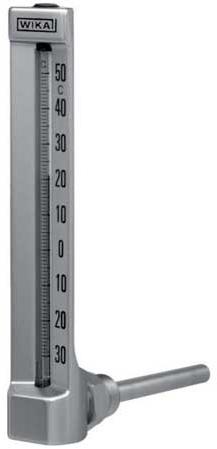

Contact SupplierWe are offering machine glass thermometer‘right control & instrument’ is a trusted name when it comes to precise machine glass thermometers that are widely used in different industrial applications for measurement of temperatures. Approved by every consultant and laboratories in world, the machine glass thermometer offered by us guarantees long life and high performance.
Special features :
vibration resistantnon-toxic thermometer liquidmeasuring ranges up to -60 .. 200 °c
casing :
aluminiumbrasscolor anodized
standard sizes :
110 mm150 mm200 mm
applications :
general temperature measurement applicationmechanical engineeringtank constructioncentral heating systems
Measuring principle | Liquid expansion |
---|---|
Limit of error | DIN 16 195 |
Approval | German Lloyd for straight design and 90° angle design |
Pressure rating of stem | Max. 6 bar (without thermowell) |
Stem | ø 10 mm ø 6,5 mm with NS 200 x 36 with union nut M 24 x 1,5 |
Case | Aluminium, brass colour anodised |
Lettering | Print with special ink, protected by anodised finish |
Thermometer glass insert | Rod shape, prismatic capillaries |
Nominal size | 110, 150 and 200 mm |
