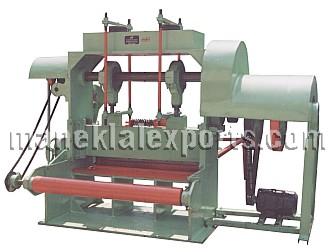

Steel, Aluminium, Brass and other non-ferrous metal sheets formed into mesh by cutting and stretching
Operation: The sheet is fed to the blades by means of rollers. A toothed upper blade cuts the sheet in conjunction with the straight stationary lower blade at right angle to the feed direction in such a way that a web of certain width remains standing which is stretched when the upper blade goes down. With the next stroke of the slide the cycle is repeated. The operation of Cutting - Stretching - Feeding is automatic.
| Model: | EMM - 1.0 | EMM - 1.2 | EMM - 2.5 |
| Capacity of Width (mm): | 1000 | 1250 | 2500 |
| Minimum Mesh (mm): | 10 x 5 | 10 x 5 | 25 x 12 |
| Maximum Mesh (mm): | 30 x 15 | 40 x 20 | 75 x 37 |
| Thickness (mm): | 0.3 - 0.9 | 0.9 - 2.0 | 1.25 - 2.5 |
| Speed (Stroke per Minute): | 60 | 60 | 60 |
| Production Capacity (in 8 hour shift in 20 x 10 mm mesh) (m): | 150 | 150 | 150 |
| Motor (HP): | 5.0 | 7.5 | 20.0 |
| Net / Gross Weight (Kg.)*: | 2700 / 3000 | 3000 / 3800 | 13000 |
| Overall Dimensions (m): | 2.8 x 1.5 x 2.2 | 3.0 x 1.75 x 2.3 | 5.0 x 2.0 x 3.0 |
| Shipping Volume (m3): | 9.25 | 12.10 | 30.00 |
