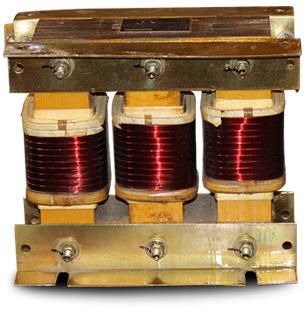

LV Series Reactor

Listing ID #3997991

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

Specification IS 5553 - 1990 Range Output up to 100 KVAR Filter factor 5.67 %, 7%, 14 % Rated Voltage - 440 V, 525 V, 690 V Type Tuned & Detuned, aluminum / Copper wound- iron core dry....

View More Details

Send Enquiry

Product Details

Specification

IS 5553 - 1990

Range

Output up to 100 KVAR
Filter factor 5.67 %, 7%, 14 %
Rated Voltage - 440 V, 525 V, 690 V

Type

Tuned & Detuned, aluminum / Copper wound- iron core dry type.

Features

Limiting inrush current during switching
Limitimg resonance and protection of capacitor banks
Harmonic banks
Harmonic filteration
Low losses & low noise level
For Triplen and Non-Triplen Harmonic suppression though PF Capacitors.
Operating ambient temperature -10 to +50 Deg C
Storage temperature -10 to +75 Deg C
Supply frequency: 47Hz to 53Hz
Current : Continuous RMS value: 150% of the rated current

Note

For harmonic loads 525 V capacitors with series reactor are recommened, which also are avaiable in stock.

Company Details

Usha Group was founded in 1992 to market all types of capacitors. We have started our manufacturing in L.V. & H.V. Capacitors under the brand name of “Usha Power” for capacitors, meters, series reactors, harmonic filter panel and all types of electrical switch board. Usha introduced in its manufacturing program a wide range of LV capacitors under ISI mark and CPRI approvals. In all these years we have been able to develop one of the largest ranges of low voltage and medium voltage capacitors, and power factor correction panel which have allowed achieving very remarkable project around the country and abroad.
We are serving worldwide through engineering, service and commitment.
Usha Group is dedicated to what it has been its product per excellence its history. The capacitors for the electrical installation with our commercial brand name Usha Power present in the market for 18 years and constant technical and technological evolution, it has succeeded in getting adapted continuously to the progress and industries requirement now a day. We are developer and innovator of designing world class technologies in the field of electricity. Our aim is to undertake challenging role of manufacturing products which needs national leads and go far beyond the horizons to meet the international competition.
