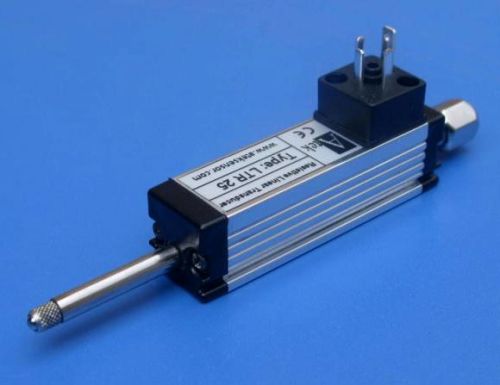

Contact SupplierWe offer LTR Series Linear Position Transducer that is the industry proven system on both actuator shaft and spring. The LTR Series Linear Position Transducer that we provide is a high precision potentiometric industrial linear motion transducer with a long lasting conductive track suitable for absolute position measuring in control measurement applications. The LTR Series Linear Position Transducer can be availed at affordable price from us. We are a renowned LTR Series Linear Position Transducer Manufacturer, Exporter and Supplier in Delhi (India).
Defined Electrical Ranges (mm) | 10 -25 -50 -75 -100 |
---|---|
Resistance Element | Conductive Plastic |
Output Signals | Potentiometric |
Independent Linearity | ± %0,2 |
Electrical Connection | 4 pin female DIN43650 |
Power Supply | Maximum 42 VDC |
Resistance | 5K-10 K±%20 (Optional Other) |
Protection Class | IP65 |
Operating Temperature | -30oC +100oC |
Life | 100 Million Movements |
Rod Material | Stainless Steel |
Housing Material | Anodized Aluminum |
