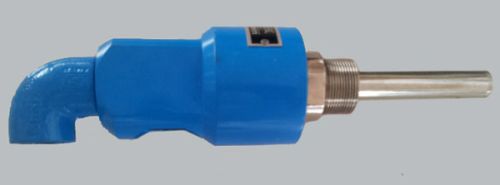

LS-RJ-21-DF-T Type Mono Flow Rotary Joints are one of the Mono Flow Rotary Joints fabricated by us. We have designed LS-RJ-21-DF-T Type Mono Flow Rotary Joints for water service. Our LS-RJ-21-DF-T....
LS-RJ-21-DF-T Type Mono Flow Rotary Joints are one of the Mono Flow Rotary Joints fabricated by us. We have designed LS-RJ-21-DF-T Type Mono Flow Rotary Joints for water service. Our LS-RJ-21-DF-T Type Mono Flow Rotary Joints can withstand extreme temperature and pressure conditions. We are appreciated for supplying flawless, user-friendly LS-RJ-21-DF-T Type Mono Flow Rotary Joints in the market. Salient Features
Dual Flow Rotor Connection Design
Stainless steel rotor
Self supported rotating union
Solid raw materials housing
Radial housing connection
Balanced mechanical seal with micro lapped
3 Vent holes and nipple for lubricating
Standard make bearings (Depend on operating data)
Better resistance against Vibrations, Shock and Media hammering
Easy installed and repaired by the user
Operating Data
Pressure : 10 bar
Temperature : Up to 220oC
RPM (Speed) : 750
Connection Type
Threads on the Rotor : BSP & ISO Metric in LH & RH
Threads on B-Port : BSP & NPT
Standard Sizes available
1/2" to 2"
Other sizes available upon request
