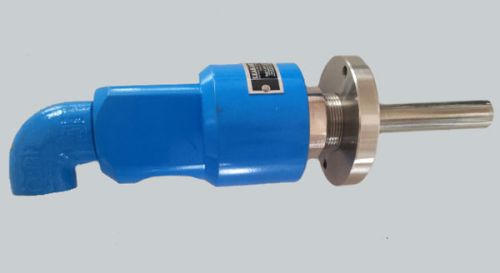

LS-RJ-21-DF-F Type

LS-RJ-21-DF-F Type Dual Flow Rotary Joints are fabricated using sturdy material which adds durability to their construction. Our LS-RJ-21-DF-F Type Dual Flow Rotary Joints are extensively used for rendering water services. We make available LS-RJ-21-DF-F Type Dual Flow Rotary Joints, which are easy to install and repair. Our LS-RJ-21-DF-F Type Dual Flow Rotary Joints are available in different sizes to meet the demands of the customers.
Salient Features

• Dual Flow Flange Connection Design
• Stainless steel rotor
• Self supported rotating union
• Solid raw materials housing
• Radial housing connection
• Balanced mechanical seal with micro lapped
• 3 Vent holes and nipple for lubricating
• Standard make bearings (Depend on operating data)
• Better resistance against Vibrations, Shock and Media hammering
• Easy installed and repaired by the user

Operating Data

• Pressure : 10 bar
• Temperature : Up to 220^oC
• RPM (Speed) : 750

Connection Type

• Threads on the Rotor : BSP in LH & RH
• Threads on B-Port: BSP & NPT

Standard Sizes available

• 1/2" to 2"
• Other sizes available upon request
