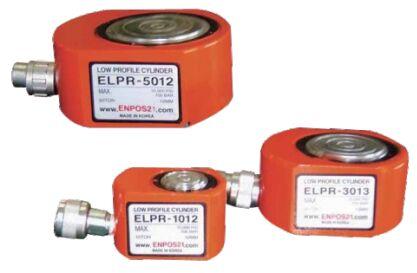

LOW HEIGHT JACKS / PAN CAKE JACKS

Listing ID #3869366

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features IDEAL FOR CONFINED AREAS FROM 40 mm to 100 mm CLEARANCE. Cylinder body, piston and gland nut treated for corrosion and abrasion resistance. Standard domed piston rod (5-30 ton) or....

View More Details

Send Enquiry

Product Details

Features

IDEAL FOR CONFINED AREAS FROM 40 mm to 100 mm CLEARANCE.

Cylinder body, piston and gland nut treated for corrosion and abrasion resistance.
Standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) minimize effects of offcenter loading.
Unique heavy duty spring provides fast piston return.
A 9796 3/8″ NPTF female half coupler is standard with each cylinder (It has a 3/8″ coupler which is not angled). Oil ports are 3/8″ NPTF.
Couplers on all cylinders are angled upward for extra clearance.
Single-acting, spring return
Mounting hole optional
Used in narrow area
For Low Clearance Lifting

Cyl. Model Capacity (tons)		Stroke (mm)	Oil Capacity (cc)	Effect Area (cm2)	Cyl Bore Diameter (mm)	Collapsed Height (mm)	Outside Diameter (mm)	Base to ADV. (mm)	Weight (kg)
Cyl. Model Capacity (tons)		Stroke (mm)	Oil Capacity (cc)	Effect Area (cm2)	A	B	C	D	Weight (kg)
ELPR-506	5	6	6.5	4	30	32	58	41	1.0
ELPR-1010	10	10	15.2	15.2	44	53	82	55	1.6
ELPR-2012	20	12	37.4	31.2	63	52	100	76	2.9
ELPR-3013	30	13	57.5	44.2	75	59	115	94	3.9
ELPR-5015	50	15	106.2	70.8	95	65	145	120	6.5
ELPR-7515	75	15	153.2	102.1	114	79	165	135	11
ELPR-10015	100	15	214.7	143.1	135	85	177	152	14
ELPR-15015	150	15	320.6	213.7	165	100	216	188	25
