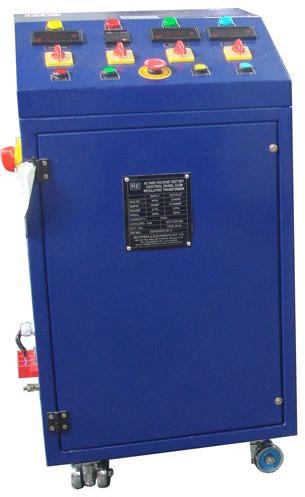

Low Capacity AC High Voltage Tester

Get Latest Price

MOQone Set(s)
CapacityUp to 200KVA
Timer0-9999 Sec./min. Digital
I/p Voltage220/230V or 380/400V, 50 or 60HZ AC supply
O/p VoltageUp 800KV and 250mA
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

AC High Voltage Low capacity testers are specially designed for testing Insulators , CT’s PT’s , Low dielectric capacitive electrical equipment, transformers etc. as per....

View More Details

Send Enquiry

Product Details

AC High Voltage Low capacity testers are specially designed for testing Insulators , CT’s PT’s , Low dielectric capacitive electrical equipment, transformers etc. as per National and International Standards. During manufacturing each unit is tested at multiple stages, thus ensuring consistency and best quality. These instruments are air cooled, oil cooled or air & oil cooled combined as per design. The units have been manufactured up to 800kV and up to 200kVA.The units have type of tests such as dry withstand, wet withstand, breakdown voltage in air/oil, oil insulation, and pollution Test.

Features

Light in weight
Casted Wheel for easy movement
Multiple safety locks for the operator
Specially designed for field operation.

Standard Accessories

Interconnecting Control Cable.
Discharge Rod.
Audio Visual alarm indicator.
Corona Shield

Optional Accessories

Output HV cable.
Interconnecting / input power cable.
Earthling lead.
Canvas cover.
LV Transformer Oil.

Technical Specifications

Parameters	Description
Control	Type 1- The unit can be manual/motorized control for voltage variation and push button controlled for HT actuation. Type 2- The unit can be complete with on board digitized panel with or without computer connectivity. Type 3- The unit can be PLC based complete with computer, HMI memory, printer etc. for operation.
Metering	Voltmeter : One Digital type connected on HT side to indicate the output voltage Scale : 0-800 kV AC. Ammeter : One Digital type ammeter Connected on earth side to indicate the leakage Current on sample under test. Scale : 0-500mA Applicable only for type -1 For type -2 and type 3 metering is self contained
Protection	Tripping - A fast acting DC relay will isolate the circuit when the current exceeds pre-set level. Overload - This is used as a secondary protection in case the input loads exceeds the preset value Overvoltage - This is used as a secondary protection in case the output voltage exceeds the preset value
Interlocking	Zero Start Interlock - The unit will have zero start interlocking to avoid the transients on HV transformer and provision for cage door interlocking shall also be provided. Earth interlock- It ensures that HV will not actutae untill good earthing is not provided.
Termination	The HT output on suitable HT insulator and other point at earth potential will be brought out on suitable insulator
Control Panel	The control panel is designed for five unique purposes. 1 -Control 2- Measure 3- Protect (Active and Passive) 4- Tripping 5 -Annunciate
HV Transformer	The transformers are designed and manufactured as per IS /IEC guidelines. Single / Multiple stage stepup transformers are utilized for achiving the desired voltage. The units are designed and manufactured using the preeminent material from India and Abroad. The coils are vacuum impregnated and insulated with High Quality EHV Grade transformer oil as per relevant IS and IEC Standard.
