Long radius bend

Listing ID #6427913

1 - 10,000 / Nos

Get Latest Price

MOQ 1 Piece
Supply Type Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Driven by vision to achieve significant growth in the industry, we are engaged in exporting and supplying Long Radius Bend. This bend is used to provide smooth and controlled flow of fluids. We....

View More Details

Send Enquiry

Product Details

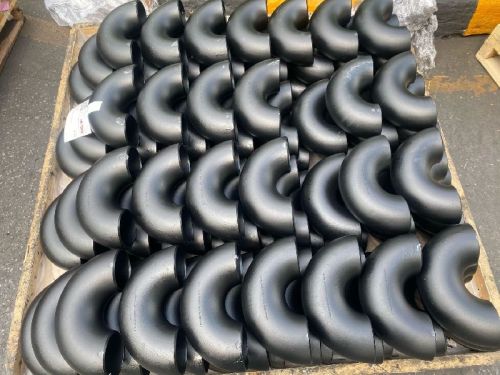

Driven by vision to achieve significant growth in the industry, we are engaged in exporting and supplying Long Radius Bend. This bend is used to provide smooth and controlled flow of fluids. We procure this bend with the help of our diligent agents. Clients can avail this bend from us in different sizes and finishing as per their requirements. We offer this Long Radius Bendat pocket friendly prices to clients.

Features:

Easy to mount
Leakage proof
Resistant to bend

Technical Specifications

Material Type :-

Size:	1/2 TO 36, (Seamless up to 24), (Welded 8 TO 36)
Standards :	ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
Dimension :	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313.
Schedule :	Sch 5 TO Sch XXS.
Thickness :	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Materials and Grade :-

Duplex Steel Buttweld 90 Long Radius Elbow :	ASTM A 815 UNS NO S31803 , S32205.
Alloy steel Buttweld 90 Long Radius Elbow :	ASTM a234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91
Stainless Steel Buttweld 90 Long Radius Elbow :	ASTM A403 WP316/316L ASTM A182 F316L, 304L ASTM A403 WP304/304L DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
High Nickel Alloy Buttweld 90 Long Radius Elbow :	Monel 400 & 500, Incolloy 800, 825 Hastelloy, Nickel, Monel, Inconel, Alloy20 Inconel 600 & 625, Hastelloy C22, C276 Copper Nickel , Cupro-Nickel 90/10, Cupro-Nickel 70/30

Additional Information

Payment Terms L/C, D/A, D/P, T/T, Western Union

Company Details

Manufacturer & Exporter of high quality Pipes, Tubes, Fittings, Flanges, Fasteners, Plate, Bar etc in various materials such as Stainless steel, Carbon steel, Alloy steel, Nickel Alloys, Duplex etc.
