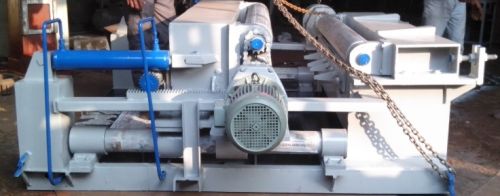

LOG DEBARKER MACHINE

Listing ID #3813829

Get Latest Price

Rollers diameter230mm
Over all dimensions3800mm x 2440mm x 1220mm
Model no.SEC-LDM 108″(2750mm)
No. of rollers3 EN Material
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

No. of rollers 3 EN Material
Minimum working diameter 3″(76mm)
Rollers length 116″(2950mm)
Maximum Working diameter 15″(380mm)
Model no. SEC-LDM 108″(2750mm)
Over all dimensions 3800mm x 2440mm x 1220mm
Branded Power Motors 3 no. 20 hp, 15 hp, 5 hp for power pack
Rollers diameter 230mm

Log Debarker Machine are widely used in the all types of plywood (panel), veneer making and woodworking industries for log bark discharger, wood discharger. This machine is hydraulically operated and can work continuously in whole process. In conventional method log bark used to discharge by man power result low production and costly, so for prevent this problem we discovered a new technology machine for discharge (remove) bark of wood log. This is the new generation wood debarking machine, this machine method is very better as compare to conventional method.

We are manufacturing this machine with the use of discovered engineered technology of international standard level to increasing your production capacity at smaller time without any man power. Productions about this machine much more, rapidly, no wearing tearing, less expensive & working without any men power. This machine simple in working and is fitted with leading quality 3 rollers made from EN 8 materials. We have manufacturing this machine on the scientific way with leading services and technical support forever.

We have manufacturing this Debarking machine in two models; SEC-LDM 56” (1400mm), SEC-LDM 108” (2750mm) and other also can design according to our customer’s requirement such as working length & working diameter etc

LOG DEBARKER MACHINE : MODEL NO. SEC-LDM 56″(1400mm) MACHINE’S FEATURES:-

Heavy duty m.s. fabricated body
Easy to operate and used friendly
Low vibration and noise
Low maintenance
Low failure rate
Leading quality
Leading services
Reducing labor & labor cost
Increasing production
Market competitive price

TECHNICAL SPECIFICATIONS:

Model no. SEC-LDM 56″(1400mm)
Body and Base Frame of the Machine heavy duty M.S. sheet
Branded Power Motors : 3 no. 10 hp, 7.5 hp, 5 hp for power pack
No. of rollers : 3 EN Material
Rollers length : 60″(1525mm)
Rollers diameter : 150mm
Maximum Working diameter : 15″(380mm)
Minimum working diameter : 3″(76mm)
Leading quality operating panel
Over all dimensions : 2286mm x 2286mm x 915mm

LOG DEBARKER MACHINE : MODEL NO. SEC-LDM 108″(2750mm) MACHINE’S FEATURES:-

Heavy duty m.s. fabricated body
Easy to operate and used friendly
Low vibration and noise
Low maintenance
Low failure rate
Leading quality
Leading services
Reducing labor & labor cost
Increasing production
Market competitive price

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Sharp Engineering Company
The Sharp Engineering Company is amongst India’s leading manufacturers, suppliers & exporters of plywood machinery, veneer making machinery & woodworking machinery manufacturing company. The product that we are manufacturing consists of Hydraulic veneer peeling lathe machine 56” (1422mm), 108” (2750mm) Hydraulic core veneer spindle less peeling machine 56 (1422mm), 1350mm, 1400mm, 2600mm & 108 (2750mm), Hydraulic rotary type Face Veneer Log Peeling Lathe Machine 108 (2750mm). Plywood Glue Spreader Machine 108″, 56″, 36″, Plywood Roller Dipping Machine for coating on Plywood/ block board (Panels).
OUR OTHER PRODUCTS FOR COMPLETE PLYWOOD & BLOCK BOARD MANUFACTURING INDUSTRIES.
Automatic Veneer production Line or Veneer Manufacturing Line
Glue Kettle Machine – for glue making.
Glue Mixer Machine – for glue mixing.
Glue Spreader Machine – for glue spreading on core veneer, face veneer.
Dipping Machine – for coating of glue or chemical on ply, plywood, ply board (panel) etc.
Knife Grinder Machine – for sharpening of log peeler’s knifes.
Belt Sanding Machine – for dust, scratches & extra waste material remove from the ply & plywood (panel) and finishing, smoothness purpose.
D D Saw Machine – for cutting extra and waste material from, plywood, ply, block board (panel) etc.
Finger Jointing Machine – for jointing, forming of ply and boards etc.
Rip-Saw Machine – for cutting wood in large pieces.
Hand Chopping Machine – for cutting core veneer.
Paddle Chopping Machine – for cutting core veneer.
Cooling (Drought) Fan – for cooling of using steel plates in hydraulic hot press machines.
Hydraulic Scissor Lift – for using loading unloading plywood products in hot and cold presses etc.
Seasoning Chamber – for drying wood in the seasoning chamber coil and fan rooms.
Planer Machine – for smooth finishing of wood cutting products in plywood companies such as single side planer machine, Double side planer machine.
Peeling Conveyor – for transfer core veneer, face veneer from log peeling machine to stock areas automatically.
Gang Saw Machine – This machine is same as Rip Saw Machine but production capacity high compare to Rip-saw Machine using automatically feeding technology.
Veneer Dryer Machine – For drying core veneer, face veneer, film face etc.
Hydraulic Presses – Also manufacturing international standard level all types hot and cold presses with turn key projects (loading-unloading systems).
The Sharp Engineering Company was established in 2003 & located in Yamunanagar, Haryana (India. The company emphasis you leading technologically versatile machinery & confidentially skill production in your organizational reputation & provides continuously support to the customers.The design, shape & parts of the machinery for excellent performance & less effort to do running machine’s operations are making by our highly qualified & experienced engineers. According to its international standardization level are quit versatile & prevents very types of production problems.
The company’s dedicated personnel along with highly technical knowledge & expert for produce leading quality plywood & veneer making machinery & running on successfully. We are leading manufacturers & suppliers of high quality precision machinery & equipment. company’s well quality control management for manufacturing ensure leading design, leading quality & leading working machinery for give you more productivity. The company offers leading quality plywood machinery & setting-up complete plywood plant & provides leading technical services support.
