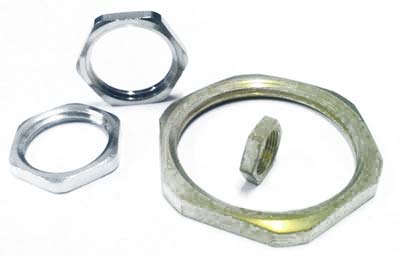

Lock Nuts

Listing ID #1346887

We are renowned as one of the reliable Metal Lock Nuts Manufacturers in India. The Brass Lock Nuts are used to secure gland body with equipment when entry hole is not tapped as the corrosion effects are minimum. Galvanized lock nuts also available and are used for dry low humid conditions. Moreover, we also counted as one amidst the major Hex Lock Nuts Exporters.
Size : M20 to M100
Genral instructions of use

• After selecting suitable gland for your application, take out the shroud from the kit.
• Cut the shroud from the closed end just less than the cable OD and slip it over the cable.
• Take the gland out of the pack, remove the lock nut and entry thread body from the gland and lighten/secure it to the equipment/panel using the locknut. Do not forget to secure the earth tag between the entry thread body and the equipment/panel body.
• Pass the outer nut, washer, outer body(s), over the cable respectively,
• Cut and remove the insulation from the cable for suitable length. Cut the armour to open the inner sheath. Now you should be able to see inner sheath, armour wire/tape/braid and outer sheath.
• Pass the inner sheath of the cable through the entry thread body.
• Secure the armour of the cable between the outer body(s) and entry thread body. in case of the unarmoured cables the outer sheath is secured with entry thread body by outer nut.
• Tighten the outer nut passing over the outer sheath of the cable to now secured body.
• Now the cable is held firmly with the equipment by means of the gland. Pass the shroud over the secured gland.
