Load Manipulators

Listing ID #3795608

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location India only

Our Load Manipulators, arm and mini balancers are semi robotic arms that work as an extension of the operators arm and provide them with a safer, easier, manual labour free and ergonomic way of....
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

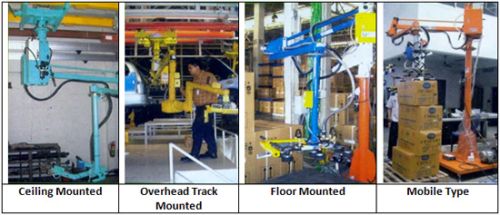

Our Load Manipulators, arm and mini balancers are semi robotic arms that work as an extension of the operators arm and provide them with a safer, easier, manual labour free and ergonomic way of lifting, transferring, positioning and assembling components.



Features
  • Pneumatic operation creates a wider variety of features weight detection, automatic balancing, overload prevention, interlock control, emergency stop, fall down prevention, rapid arm lift prevention control and more.
  • No special training needed
  • Easy operation at your fingertips (without any complicated switch control)
  • Versatile carrying, lifting and load manipulation.
  • Ergonomical posture at every stage.
  • Accurate positioning And alignment without any swaying of loads.
  • Maintenance free
  • High durability and economical operation
  • Aluminium overhead track system for perfectly matched system solution
  • In case of interruption of air supply built in safety device prevents abrupt fall down of load.
  • Brake systems for preventing joints from rotating.




Model Capacity (kg) Vertical Stroke (mm) Body turning Main Unit Weight (kg) Fixed Base Weight (kg) Wheeled Base Weight (kg) Short Pipe Weight (kg) Trolley Weight (kg)
FIXED TYPE
MS-75 75 1599 360o 200 110 - - -
MS-125 125 1550 360o 335 120 - - -
MS-250 250 1500 360o 500 150 - - -
WHEELED TYPE
MS-75 75 1599 360o 200 - 430 - -
MS-125 125 1550 360o 335 - 500 - -
MS-250 250 1500 360o 500 - 720 - -
OVERHEAD TYPE
MS-75C 75 1599 360o 200 - - 15 160
MS – 125C 125 1550 360o 335 - - 20 280
MS-250C 250 1500 360o 500 - - 25 430
