Load Frames

Listing ID #124022

We are a name of repute in manufacturing and supplying Load Frames of superior quality at reasonable rates. The Load Frames we export are available in two models.

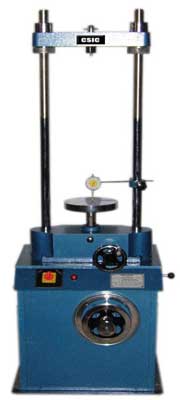

LOAD FRAME MOTORISED CAPACITY 50KN HAVING 8 SPEEDS
FeaturesTwo Pillar typeDetachable FrameEnclosed Motor and Gear SystemIndicatorSpeed ChartUseful in Triaxial and C.B.R. testComponentsCabinet which housed the electrical motorReduction gear the loading is done by the upward movement of the lower plate which is firmly fixed to the lead screw. When the lever is set in the neutral position , it isolate the lead screw from the rest of the drive mechanism, and the lead screw ca n then be manually moved up or down by operating the handle.A main switch, an indicator and a forward reverse switch are fixed on the unit.A relay is fitted inside the cabinets that in case of power failure, the unit will not restart of its own on the resumption of power, unless the switches are operatedThe adjustable cross head can be set at any desired position or height over the two pillars and secured in position by tightening the adjustment nut. It has a hexagonal adaptor.Its rates of strain are 0.0 2 5mm. /min, 0 .0 5mm/min , 0 .0 5mm/min , 0.0 6 2 5 , 0 .1 2 5mm/min , 0 .0 2 5mm. /min , 0 . 0 2 5mm. /min , 0 . 5mm/min, 0 . 6 2 5mm. /min and 1.2 5mm. /min.Suitable forOperation on 230 volts,5 0 cycles , single phase ,A.C. supply
LOAD FRAME MOTORIZED CAPACITY 50KN WITH 3 RATES OF STRAIN.
Technical detailsTwo pillar typeDetectable frameEnclosed motor and gear systemIndicatorUseful tri-axial and C.B.R testElectrical motorReduction gearAdjustable crossheadMain switch, forward reverse and reverse switch fixed on the unitRelay is fitted for power back-upHexagonal proving ring adaptorRate of strain are 2 .5mm./min, 1.5mm/min and 1.2 5mm. /minUsed inConstruction industryChemical industrySoil-testing purpose
