Contact SupplierProduct Code:Â EKE 062
Â

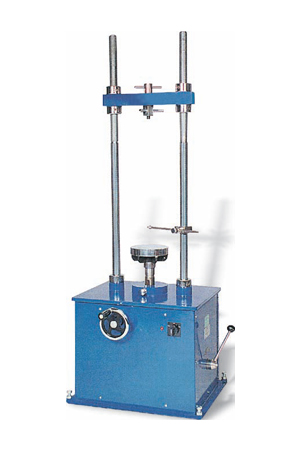

Load Frame, Motorised 3Â speeds, 50 kN (5,000 kgf)
Â
Two pillar type Light weight and Sturdy in construction Ideal for using in mobile laboratory also. This load frame is designed for conducting unconfined, triaxial, CBR and other routine tests.
Loading system comprises of a screw jack with a detachable handle. The lower platen moves up and down. The top bracket is adjustable for vertical clearance and has an adaptor for connecting standard proving rings or load cells. A dial gauge mounting bracket is provided on one of the two pillars. Rate of strain: 3 (1.25, 1.50, 2.50 mm/ min.) Suitable for operation on 220 V, 50 Hz, single phase, AC supply.Â
Cat No. | EKE 062 | EKE 064 | EKE 065 | EKE 066 |
Capacity | 50 kN (5000 kg) | 50 kN (5000 kg) | 200 kN (20,000 kgf) | 500 kN (50,000 kfg) |
Types of operation | Electrical cum manual | Electrical cum manual | Electrical cum manual | Electrical cum manual |
Rates of strain mm/min | Three Rates 2.25,1.5 & 2.5 | Thirty Rates 0.0048 to 6.00 | Twelve Rates 0.0064 to 1.25 | Twelve Rates 0.000125 to 5 |
Horizontal Clearance Vertical clearance Maximum platen dia Maxim platen Travel Specimen dia |
265 mm 700 mm 157 mm 100 mm 38 to 100 mm 150 mm
|
300 mm 750 mm 19 mm 100 mm 38 to 100 mm 150 mm
|
300 mm 750 mm 198 mm 100 mm 38 to 100 mm 38 to 100 mm AX,BX,NX Cores of rock upto 100 mm dia |
525 mm 1500 mm 250 mm 160 mm |
Application | Triaxial,CBR & Unconfined Compression | Triaxial & CBR Tests | Triaxial Test on Unconfined Rocks,Unconfined Compression text |
Routine Tests on rocks unconfined on medium & coarse grained stablized soil |
