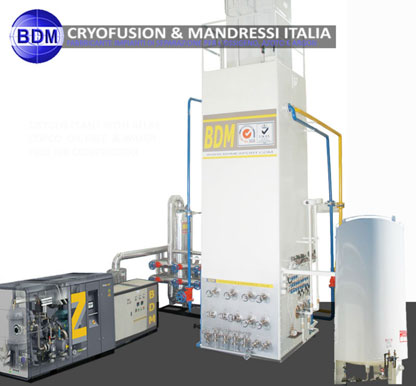

Liquid Oxygen Plant

Listing ID #4115922

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

TECHNOLOGY Our company is well equipped production units to manufacture technologically advanced liquid oxygen plants. The R&D team is responsible for analyzing the industry requirement and....

View More Details

Send Enquiry

Product Details

TECHNOLOGY

Our company is well equipped production units to manufacture technologically advanced liquid oxygen plants. The R&D team is responsible for analyzing the industry requirement and streamlining the manufacturing procedure so that we can update our products accordingly. Apart from ISO certification, working towards a unified goal and producing advanced machines help us get CE & ASME approval for quality. This particular approval plays a great role for supplying products in USA and European market.

Our company is manufacturing and supplying liquid oxygen plant, which is made in technical collaboration with “Felice Mandressi” of Italy. The Italian company offers technology and designing expertise to make our machines fully automatic and advanced. The production range of the machines starts from 20 litres/hr to 1000 litres /hr. The system generates liquid oxygen with purity upto 99.7% perfect for the North American and European Pharmacopoeia standards. The outputs of the machines find application in a number of industries such as water process, ferrous metallurgy, non-ferrous metal refinery, coal mines and pharmacy.

FEATURES :

The plant compact and easy to install
Built-in liquid oxygen pump for high pressure oxygen filling
Output range - 20 litres/hr to 1000 litres /hr
CE certified product with design as per European Gas Association guidelines for ASP’s
Cryogenic expansion of air for cooling via Expansion Turbines
No special civil foundation required for any part of the plant
Hydrocarbon vapor level reduced below 0.003 PPM to ensure safe operation
Long life of the plant and machinery > 15 years to 20 Years
High degree of Instrumentation with ergonomic design
Plant noise level only 74 - 76 Db
Cylinder filling system at 155 Bar for Oxygen & Nitrogen
Oxygen suitable for medical uses

PROCESS DESCRIPTION :

Air Compressor :

We use latest air compressor to compress the atmospheric air. After completing the process, it sends the compressed air to the pre-cooling unit, where the temperature of air is reduced to 12 deg C.

Pre Cooling System :

The pre-cooling unit performs by cooling the compressed air around temperature 12 deg C before it enters the purifier.

Purification of Air by Purifier:

In the purification unit, the impurities, including carbon di-oxide & moisture, of the cooled air get eliminated. Once the air become pure, it sent to the air separation unit.

Cryogenic Cooling of Air by Expander :

The air has to be cooled to sub zero temperatures for liquification & the cryogenic refrigeration & the cooling is provided by highly efficient turbo expander, which cools the air to temperature almost below -165 to-170 deg C.

Separation If Liquid Air into Oxygen and Nitrogen by Air Separation Column :

The oil free, moisture free and carbon dioxide free air get separated into oxygen and nitrogen by the process of rectification. The oxygen purity is upto 99.7% and nitrogen upto 99.99% respectively.

Cylinder filling manifold :

The last stage is cylinder filling manifold, where the final output in the gas and liquid form gets filed in the cylinders and tanks.

Company Details

Our company BDM Cryofusion & Mandressi Italia was set up in New Delhi, India in 1997. With the years of experience and international presence, we have earned expertise in the industry for designing, manufacturing and supplying a number of plants such as oxygen plants, nitrogen plants, acetylene plants, air separation plants and more. The machines’ capacity is ranging from 20 m3/hour to 5,000 m3/hour and they operate at a working pressure of 6 to 8 bar. Our consistent efforts and collaboration with internationally appreciated Italian company assist us to fabricate the plants in sync with ISO benchmarks.
Engineering Expertise
The success of our company is based on its world-class engineering expertise and its own highly-developed design & manufacturing teams. We can prepare high-quality detailed design documentation even on short deadlines. Our company has experience in effectively adapting and imparting foreign technologies to make the plants technologically very advanced.
Infrastructure & Facilities
Apart from the advanced and fully automatic, our well equipped infrastructure is our biggest asset. We have experienced engineers to perform a lot of research and development activities, which is only possible due to our latest infrastructure & facilities. Our workforce is technologically very advanced and has years of experience in their respective field of designing, drawing, erection, commissioning and installation.
Our customers
We are a well established name in the engineering sector for manufacturing and supplying different types of plants. With the years of experience, we have supplied over 300 plants in over 40 countries, including Australia, the UK, New Zealand, Nigeria, Zimbabwe, Congo, South Africa, Ghana, Zambia, West Africa, Iran, Sharjah, Abu Dhabi, Qatar, Mauritius, Zambia, Dubai, Syria, South Africa, Egypt, Saudi Arabia, Peru, Qatar, Indonesia, Kuwait, Kazakhstan, Iraq, Syria, Jordan, Libya, Venezuela, Brazil, Spain, Italy, Kazakhstan, and many others.
CE & ISO Certification
We are ISO 9001:2008 certified company, which means we adhere strictly to the internationally mandated quality processes.On the other hand, we have also been awarded CE certification, which is essential for exporters and suppliers wanting to sell their products into the North American and the European markets. Both the certifications convey that our products are manufactured in compliance with international standards.
Shipping and packaging
Our company hires professionals in order to streamline packaging and shipping services. Teams are made to package the machines carefully before shipping. Once the machine reaches the destination country, we send our engineers to install the system as per the user manual guide and provide training to the operator/engineer. Our customer support services are available round the clock. Contact our customer care executives now to get quotation and other details of your potential machine.
