Liquid Helium Level Meter

Listing ID #3939404

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

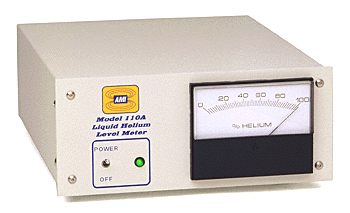

The low-cost Model 110A liquid helium level meter reliably measures the helium level in a dewar. A 3.5 inch analog display provides 0-100% liquid helium level indication. A 0-10 V recorder output is provided on the rear panel of the instrument. The Model 110A can be used with any AMI liquid helium level sensor up to 60 inches in active length.

The Model 110A is commonly used for quick and accurate level indication in portable helium storage containers such as those pictured here. Simply plug the unit into the nearest outlet, read the level in percent and then covert to volume using the transport dewar strapping sheet. Level sensors can be built-in by the dewar manufacturer or provided direct from AMI with a metal top sleeve for sealing through the withdrawal port using the standard compression fitting. Simple sheet metal brackets are used to create a platform for the level instrument.

Company Details

The rated field of each AMI magnet is the field at which the magnet can be operated continuously when immersed in liquid helium at a maximum temperature of 4.2K. Quench fields exceed the rated field in all cases. All standard magnets are tested by AMI in excess of the rated field. Warranted performance at lower temperatures and higher fields can be supplied on special order. Protection from damage in the event of a quench at fields up to and including the rated field is assured by the design and construction of the magnet. Each magnet is warranted against such damage by the standard AMI warranty.
All quoted currents are nominal and may vary slightly from the cited currents in the final magnet. The coil constant which specifies the magnetic field produced per ampere of current is supplied with each magnet. This constant is determined analytically for lower-homogeneity magnets, or by NMR measurements for high-homogeneity magnets.
Persistence of the magnetic field in the persistent mode varies with the inductance of the magnet and the conductor used in its construction. Guaranteed quotations can be provided upon request.
Homogeneities are specified as the maximum deviation from the central field at any point in the specified volume, and are usually quoted over a 1 cm diameter spherical volume. Where required, the homogeneity is verified using a 3 mm diameter NMR probe moved throughout the homogeneous volume.
