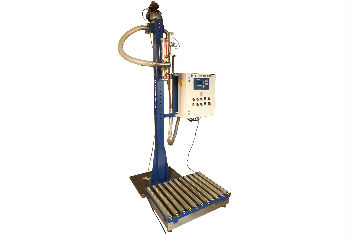

Liquid filling system

Listing ID #4199200

Get Latest Price

Data TransferStandard: USB Optional: Data logging Software, Printer, PLC
Resume Filling Function: 1. Power failure 2. Material weight not increasing 3. Emergency Button 4. Air Failure / Air Pressure Drop AlarmIntuitively designed system to ensure auto-judge abnormal behavior due to errors and take corrective actions. Hence, enhancing operators productivity.
ReadabilitySingle Drum: 10gm, 20gm, 50gm; Multi Drum & Tote: 100gm, 200gm
Reporting features: 1. Daily Accumulation with No. of containers filled 2. USB Data Transfer: DataVarious reporting feature benefits customer in their day to day operations ensuring daily production data available for factory reporting purposes.
Supply Type Manufacturer, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Capacity Single Drum: 50kg, 100kg, 300kg; Multi Drum & Tote: 1000kg, 1500Kg, 2000kg
Jog Mode System automatically judges under filling error and corrects filling accordingly.
Ball Valve Standard: 3 position Electropneumatic SS304; Optional: SS316, SS316L, Teflon Lined, Triport
Platform Size & MOC Single Drum: 600 x 800mm; Multi Drum: 1000 x 1000mm to 2000 x 2000mm Standard: MS / SS; Optional: SS / SS
Material Handling [Optional] Non - Motorized & Motorized Roller Conveyors [with or without Traffic Management] Structure: MS Powder coated or Ss304 Rollers: MS Zinc Plated, SS304, SS316
Hazardous Area [Optional] Available for Zone 1 IIA/IIB, Zone 2 IIA/IIB, Zone 2 IIC
Reporting features: 1. Daily Accumulation with No. of containers filled 2. USB Data Transfer: Data Various reporting feature benefits customer in their day to day operations ensuring daily production data available for factory reporting purposes.
Fail Safe ball valve Ensuring protection against spillage or overfill in event of Air failure.
Flow Rate display Assist in Identifying reasons of filling inaccuracy
Min/Max Tare Weight Check Ensures filling start on placement of correct drum.
Jacketing & Insulation Lance & Ball Valve: Insulation / Electric Heater / Hot Water Jacket / Steam Jacket
Air Requirement 6- 8 bar
Resume Filling Function: 1. Power failure 2. Material weight not increasing 3. Emergency Button 4. Air Failure / Air Pressure Drop Alarm Intuitively designed system to ensure auto-judge abnormal behavior due to errors and take corrective actions. Hence, enhancing operators productivity.
Lance Assembly Standard: SS304; Optional: SS316, SS316L, Teflon lined
Power Requirement 230V AC, 50Hz
Data Transfer Standard: USB Optional: Data logging Software, Printer, PLC
Gas Purging Available with Nitrogen or Steam
Ramp Roller Ass. [Optional] Single Drum: 600 x 800mm; Multi Drum: 1000 x 1000mm to 2000 x 2000mm Standard: MS / SS; Optional: SS / SS
Auto in-flight Correction Auto judgment of in-flight material to reduce overfilling.
Platform Roller Ass. [Optional] Single Drum: 600 x 800mm; Multi Drum: 1000 x 1000mm to 2000 x 2000mm Standard: MS / SS; Optional: SS / SS
Multiple filling targets High end filling controller capable of storing multiple drum types with set points; ensuring quick changeover of drums.
3 steps filling control Coarse, Fine, Super Fine Best in class filling accuracy with +/- 0.03 – 0.05% of FS
Product Line Connection Required Flexible Product hose 1 ½ " NPT connection standard
Readability Single Drum: 10gm, 20gm, 50gm; Multi Drum & Tote: 100gm, 200gm
