We promise to make delivery on time, as we have a wide spread network of logistic service providers and dealers. Being a high-flying name in this arena, we promise to deliver the best in line quality products. In addition to this, we make sure that the offered lot is prepared using the finest grade material.

Details

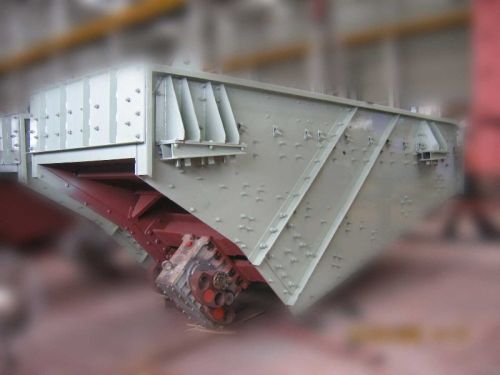

• Linear Motion Screens are operated either by a mechanical exciter or two unbalance motors. In both cases rotation in opposite directions creates linear vibration. Linear motion screens are very high performance machines, in terms of capacity and efficiency. They have a low inclination which varies between 0 degree and 15 degree due to this low inclination required head room height too becomes low. The drive is a combination of high amplitude and low frequency of vibration.
• The Linear Motion Screens are bolted Single , Double or Triple deck structure with a substantially rigid design. The screen body consists of the two side plates with bolted transverse supports and screen mounts. The screen box is based on an open design.
• The vibrating screen is supported above the substructure by means of helical coil compression springs. The screen installation angle can be varied to suit the application.
• The drive is through direct force exciter and Cardon shaft. The angle of throw is determined by the construction and application but usually 35 to 60 degree. The counterweights can be adjusted in stages from 50 to 100%. for variation of amplitude.
• There are several options for lubrication, oil or grease, which can be used without modification. Selected bearing seals ensure a long service life.

Applications:
With single or multiple screen decks

• Coal, Coke, Pet Coke, Lignite, Limestone, Dolomite.
• Minerals, Ores, Pellets, Sinter
• Sand and Gravel, building materials
• Chemical Products, Fertilizers
• Compost, Refuse, Refuse Slags
