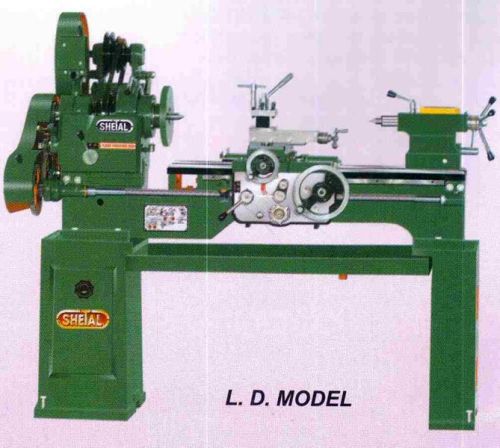

Light Duty Lathe Machine

Listing ID #545047

Get Latest Price

Preferred Buyer Location All over the world

We are engaged in exporting and supplying precision engineered Light Duty Lathe Machine. Light Duty Lathe Machine, offered by us, is made with high quality raw materials. Thus, the Light Duty Lathe Machine is sturdy and durable. The Light Duty Lathe Machine is highly appreciated for its user-friendliness and hassle-free performance.

View More Details

Send Enquiry

Product Details

Technical Specifications

Description	Shetal LD NO. 1	Shetal LD NO. 2	Shetal LD NO. 3
Length of Bed	1370 MM (4' 6")	1600 MM (5' 3")	1830 MM (6')
Max. A. B. Center	685 MM (27")	915 MM (36")	1145 MM (45")
Max. Swing Over Bed.	305 MM (12")	305 MM (12")	305 MM (12")
Max. Swing Without Gap.	495 MM (19")	495 MM (19")	495 MM (19")
Max. Swing Over Cross Slide	178 MM (7")	178 MM (7")	178 MM (7")
Height of Center Over Flat Bed Ways	165 MM (6.1/2")	165 MM (6.1/2")	165 MM (6.1/2")
Width of Bed	240 MM (9.1/2")	240 MM (9.1/2")	240 MM (9.1/2")
Spindle Hole	40 MM (1.9/16")	40 MM (1.9/16")	40 MM (1.9/16")
No. of Spindle Speed & Range	8 (35 TO 855 RPM)	8 (35 TO 855 RPM)	8 (35 TO 855 RPM)
Lead Screw Dia. & Pitch	25 MM (1" x 4" TPI)	25 MM (1" x 4" TPI)	25 MM (1" x 4" TPI)
Tapper of Center in Head and T.s.	MT.-3	MT.-3	MT.-3
No. of Metric Threads and Range	(1 TO 6 MM PITCH)13	(1 TO 6 MM PITCH)13	(1 TO 6 MM PITCH)13
No. of Inch Threads & Range	(2 TO 24 TPI) 19	(2 TO 24 TPI) 19	(2 TO 24 TPI) 19
Power of Ac Motor 3 P.h. (1440 Rpm)	1 H.P.	1 H.P.	1 H.P.
Approx Weight in Kg.	460 Kg.	510 Kg.	540 Kg.
Note : Standard Acc.: Face Plate, Chuck Plate, Center Adapter 2 Nos., Dead Center, Tool Post Key, Change Gear Set of (inch & Mm) Steady Rest, Motor Pulley. Extra Standard & Electrical Acc.: Follow Rest, Chuck, Ele. Motor, Nylone Belt, Re. Switch, Motor V-belt.
