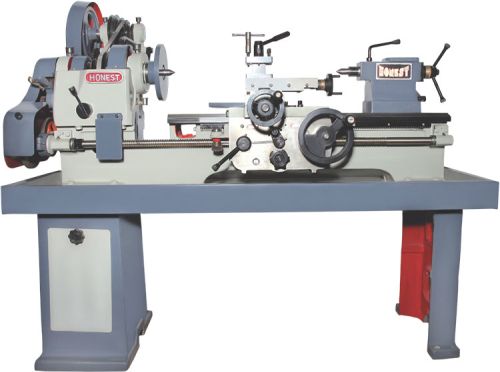

Light Duty Lathe Machine

Listing ID #4306903

  • Swing Over Bed315mm
  • Compound Dlide Travel120mm
  • Height of Center165mm
  • Swing in Gap500mm
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 8 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Swing in Gap 500mm
  • Movement of crossdlide 225mm
  • Swing Over Bed 315mm
  • Renge of Matric Threads 0.5 to 7
  • Electric Motor 1440 RPM. 1 HP/3 Phase
  • Lead screw Diameter & pitch 25.4mm/4TPI
  • Height of Center 165mm
  • Renge of inch Threads 4 to 48 TPI
  • Compound Dlide Travel 120mm
  • Bed Type 2V & 2Flat
  • Tail stock Spindle Travel 115mm
  • Bed Width 238mm
  • Tail stock Spindle Dia/Taper 38.1mm/MT-3
  • Swing over Cross slide 180mm
  • Drive V-Belt Single B-42
  • Spindle Nose & Threadad 8T P1 / 61mm
  • Spindle Bore 40mm

Standard Accessories

  • 8" Chuck Plate
  • Spindle Sleeve
  • 2 Dead Center
  • Change Gear Set
  • Tool Post Key
  • Motor Pulley


Range Admit Between Center Weight (Approx)
1050mm 350mm 400kg.
1370mm 650mm 440kg.
1600mm 875mm 475kg.
1830mm 1100mm 550kg.
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Gayatri Machine Tools established in 1993. Our company manufacturer and exporter of All Types of Lathe Machines under the Brand name 'HONEST'.
Manufacturing plant is equipped with modern manufacturing facilities along with technically sound management team and qualified engineers for manufacturing quality products which ensures adequate process control to produce right kind of all types of Lahte Machines. The raw material used for manufacturing Hydraulic Hacksaw Machine is with specified grade.
Efficient management, skilled professional team, state-of-art infrastructure and standard process and no compromise with the quality is the real strengths of Gayatri Machine Tools for meeting complete customer satisfaction.
