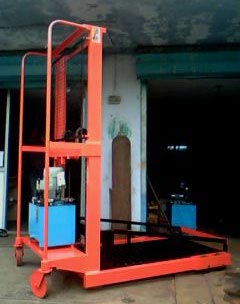

We are offering lift stacker.
capacity : 1000 kgs.
lowered height : 90 mm.
raised height : 3200 mm
fork length : 1100 mm
fork width : 650 mm
structure : duplex design double mast structure made from „c channel section, supported by heavy-duty deep grooved guide rollers. Forks
lifted by means of 2 nos. Double chain & pulley design.hydraulic unit : 1 no. Vertical mounted, single acting, honned hyd. Cylinder
with hard-chrome plated piston.
wheels : 2 nos. 180x50 mm. Size white virgin nylon wheels at front (handle) side & 4 nos. 80 x 70 mm. Size load roller wheels at
rear side. All wheel contains double ball bearings for easy movement of stacker.
