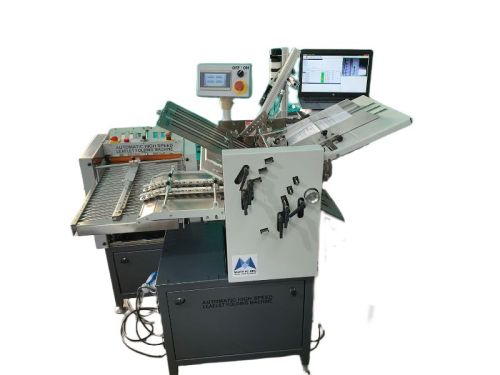

Contact Supplierpharmacode inspection system for inserts and outserts
Â
suitable for pharmacodes , barcodes and blank sheets
Â
Â
description:
Â
a) absolute basic (blank sheet detection) - this budget-friendly top bottom camera system includes 2 small cameras, a 15 “ capacitive touchscreen industrial panel compute (fanless), sensor, mountings, and a straightforward controller.
Â
- the machine will stop if one of the cameras notices a blank page (no printing).
- it is a very straightforward and dependable device that stops blank sheets.
Â
Â
Â
Â
Â
2. basic system: this system is made up of the following parts:
Â
- 1 baumer sensor - 15" capacitive touchscreen fanless ipc - basic controller - cables & mountings - 2 baumer hhs smart cameras
Â
with one significant exception, this system is comparable to the very basic system. the cameras are capable of the following tasks:
Â
- pattern matching (good for detecting blank sheets, inspecting orientation, and detecting mix-ups***)
- reading 1d codes, including pharmacode
- reading 2d codes
Â
Â
the live images and individual camera counts are shown in this system. this system doesn't have a database, information on jobs, or reports.
Â
high quality camera based and ipc  inspection and rejection system with 21 cfr part 11 compliant
Â
can be able to show faulty or rejected pharmacodes / barcodes and also can able to see live screening of ongoing jobs batchwise counting .
Â
all data report including user security batch making , job types , receipe batch , total rejected and accepted counts . which can able to see overall production of the machine per day as per required time.
Â
Â
Â
3. advanced system: the components of this system
Â
2. baumer hhs smart cameras. 1. baumer sensor. encoder. 10.4" capacitive touchscreen fanless ipc. advanced vision controller. cables & mountings. advanced vision inspection software.
Â
the same inspection is performed by this system as it does by the basic system mentioned above, but it also includes a user interface specifically created for folding machine inspection. the ui shows real-time photographs as well as total camera counts from both, product specifications, etc. the technology also includes a database that stores the job's progress even in the event of a power outage. furthermore, user login passwords are used to secure the system.
details including
Â
product identifier, batch number, user identifier, good/bad/total counts
patter match, 1d code, 2d code, and the code value of each camera are inspection tools.
Â
Â
- job start, make ready, and job finish timestamps
- be prepared to count
– acceptance/rejection by qc, etc.
Â
the reports can always be downloaded to a usb flash drive.
Â
Â
the following characteristics of 21cfr part 11 compliance, which can be incorporated to this system,Â
