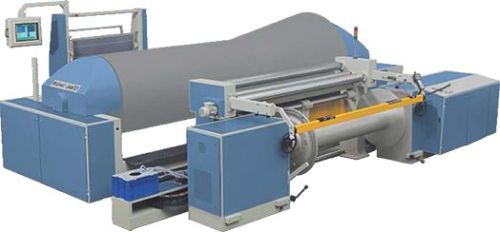

Contact SupplierYarn Built-up through Laser Sensor Extremely robust separate warping and beaming structure. Movable beaming structure on both side. Extremely effective air cooled hydraulic disc break. Constant beaming tension with beam oscillation function.
Three servo system for warp table traverse motion, warp table cross
Motion and machine head stock motion in synchronization with each other.
Ball screw for high precision warping. Linear guide for under carriage movement. Kick Back type Feeler Roller for Compact Beam Programmable Leasing Device Section Tension Control Reverse/Forward Drum Rotation
Working Width | 1800 mm to 4200 mm |
Beam Flange Diameter | 800 - 1250 mm |
Cone Angle | 7° / 8.5° / 10.5° |
Drum Circumference | 3140 mm |
Warping Speed | 0 - 800 mts/min |
Beaming Speed | 0 - 150 mts/min (higher on request) |
Beaming Tension | 0 - 450 Kg (higher on request) |
