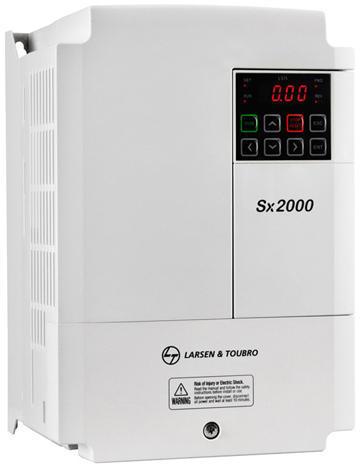

L&T SX2000 Variable Frequency Drive

Listing ID #6251529

Features:

• Built-in Brake Control
• Inbuilt PLC functionality
• Component Life Monitor
• Inbuilt PID
• Multi Keypad
• No Motor Detection

Description:

• The Sx2000 adds a new dimension to L&T's AC drive solutions. Built to L&T's stringent quality standards, the Sx2000 is tested and certified to meet global benchmarks, thus giving you the assurance of total reliability. The Sx2000 is built to deliver powerful performance. It handles loads up to 75 kW (HD) / 90 kW (ND) – making it perfect for compressors, conveyors, machine tools, elevators, textiles, fans, pumps, plastic extruders, wire drawings, etc.
• Parameters can be copied/loaded from the drive to the smart copier and vice versa – simply with the keypad. It produces a starting torque of 200% at 0.5 Hz, which provides better control at low-speed. Its compact size enables panel-size reduction, hence helps in space-efficient design. It has safety features like Safe Torque Off (STO) with redundant input circuit which meet EN 61508 SIL 2 standards.
• The Sx2000 is built to deliver powerful performance. It handles loads up to 75 kW (HD) / 90 kW (ND) – making it perfect for compressors, conveyors, machine tools, elevators, textiles, fans, pumps, plastic extruders, wire drawings, etc.

L&T SX2000 Series AC Drives Dual rating operation:

• Designed to be used for heavy and normal duty applications.

L&T SX2000 Series AC Drives Overload capacity:

• Heavy duty operation: 150% of rated current for 60 sec.Heavy duty operation: 150% of rated current for 60 sec.

L&T SX2000 Series AC Drives Safety Disable function (Safety Stop):

• Sx2000 is compliant to the EU Machinery Directive without the additional of previously required external devices. Through this compliance, Sx2000 reduces the number of peripheral devices needed to satisfy safety regulation. It results in cost, space, and maintenance reduction.

L&T SX2000 Series AC Drives Multi-Keypad:

• Optional LCD keypad of Master drive enables to access every drive (Slave) connected via inbuilt RS485 communication so that the users adjust and monitor parameters easily.

L&T SX2000 Series AC Drives P2P communication:

• Peer to peer communication among the drives allows sharing any I/O via inbuilt RS485 communication. It might be useful in case of limited number of I/O points for a certain system.

L&T SX2000 Series AC Drives P2P communication:

• User sequence creates a simple sequence from a combination of different function blocks with direct access to Drive parameters.No Software required to create logic.The sequence can comprise of a maximum of 18 steps using 28 functions blocks.Function blocks: AND, NOR, ADD, SUB, MIN, MAX, COMPARE, TIMER, XOR, SWITCH, UP/DWN COUNT.etc.

L&T SX2000 Series AC Drives Component Life Monitoring:

• Sx2000 monitors both main capacitor’s lifecycle and Fan.When the life span of Fan is near, Sx2000 outputs via Relay or Digital output as a alarm sign.
