Laminar air flow Horizontal Flow
A unit to provide clean air, removes dust particles, double
filtration of air through, pre filters and HEPA filters. Basically
the laminar flow cabinet made of wood and Plywood. All
exterior surfaces are covered with white laminated sheet, all
the interior portions are epoxy painted and made termite proof
weather resistant. Stainless steel table top is also available,
front and side of the working table are paneled with 2 mm
polycarbonate transparent glass door. Equipped with U.V.
Germicidal light, Fluorescent light, provided cock for gas / air,
prefilter & Hepa filter, static inclined pressure manometer
Working Area Approx. external dimension
in cm L x W x H in cm
60 x 60 x 60 65 x 100 x 155
90 x 60 x 60 95 x 100 x 155
120 x 60 x 60 125 x 100 x 155
180 x 60 x 60 187 x 100 x 155
b) Laminar air flow Vertical BSW make

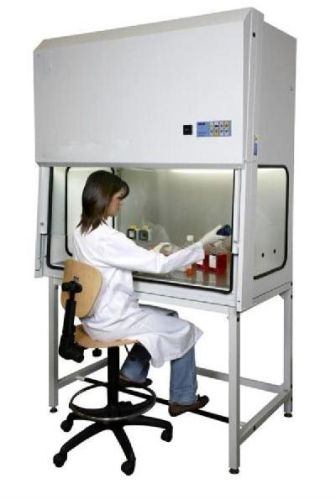

Laminar flow cabinet (Vertical flow) : - Fitted with all standard
accessories stated in the horizontal manner Laminar Flow
Cabinet.
Cleanliness class 100 with an efficiency 99.9%
Particle retention 0.3 microns and above.
Working Area App. L x W x H in cm
60 x 60 x 60 70 x 76 x 198
90 x 60 x 60 98 x 76 x 198
120 x 60 x 60 128 x 76 x 198
180 x 60 x 60 188 x 76 x 198
