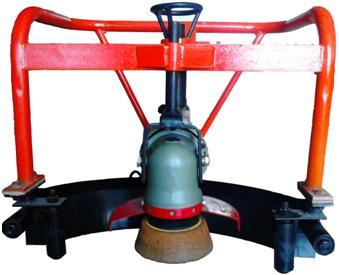

Orange-yellow Semi Automatic Lakshmi Brand Rail Profile Grinding Machine

Listing ID #1558528

We are offering rail profile grinding machine. Light weight rail profile grinding machine developed by “lakshmi meerut” is an efficient, versatile & easy to operate machine in the hands of p.way engineers which facilitate them with an easy grinding method to grind the trimmed joint and left over metal on alumino thermit welded rail joints. The machine requires the need of only two semi-skilled gang men. The machine has efficiency to work on any rail section up to 60 kgs and of 72 to 110 kgmm2 uts with in specified tolerances. power unit: - the prime mover is a strong ac operated motor capable of generating an output of 2200watt at 4500rpm. The operable supply required is 220v, 50hz ac. Transportation: - a light weight monorail cum road trolley weighing only 17k.g capable to carry a payload of 100k.g may be provided with the grinder to facilitate the transportation of the machine with ease. Grinding unit: - it is a fabricated unit capable to swiveling at 90o on either side of vertical position for grinding the edges of rail head, gauge and non gauge faces as per original profile of the rails. It has been so designed that the operator can watch the grinding process continuously and inspects the grinding mark during operation without any extra effort. parts supplied with each machine:- a. Grinding unit fitted with motor. B. Tool kit. C. Instruction manual of the motor. D. Grinding stone e. Key for fixing and removing of grinding stone. technical data:- weight 35 kg type of stone used cup type resinite bond angle of swiveling 90 on both sides of rail motor capacity 2200w motor type ac 235v, 50hz grinder capacity 0.2mm
