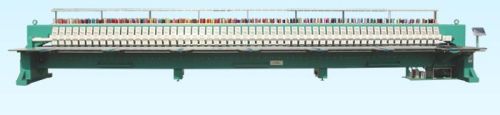

Contact SupplierThe various Embroidery Machines of HeFeng brand widely apply batch process in the Toy,childrens wear,Sweater,Underclothes,Bedding, fashional field, handbag, wedding Dress, Shoes/Hat ,Curtain, Accessories, Top Grade Art ware etc.and with excellent performance.
Main Function:
● The machine has multi-heads and multi-needles, can embroider several chain stitch flat designs at the
same time and have the auto trimmer function.
● 5inch,8inch,10inch touch monitor computer selectable. Modern Design of operating panel, USB input
port ,Color LCD display showing real time stitching ,Pre-sew design trace capableEmergency stop
● Color-Change Mode: Step Color-change , Automatic Color Change. Auto color change according the
design when in embroider.
● Thread Trimming system: Automatic Thread Trimmer, Solenoid thread holding, step motor thread
trimming and catching.
● Needle Position Detecting : Rheostat . The machine has multi-heads and needles, can embroider
several colors stitch flat designs at the same time, with auto trimmer function.
● Thread Break Detecting : Thread break detection ,Thread take-up spring or chopping wheel .
Machine will auto stop and show the thread breakage head position if the thread break or the upper
and udder thread used up when in the embroider.
● Memory: 2 Million , Design Number :200. After the design file input computer can keep forever, the
memory storage up to 2,000,000 stitches and store 200 samples.
● Language: Chinese, English, Turkish, French, Spanish, Portuguese
● Data Transfer Floppy Disk: Pattern input/output support USB updating.
● Network Function: Support multi-machine network, data transfer, state monitoring, operating though
network.
● Electricity: 220V/50Hz ,380V/50HZ available
Configuration:
1.Dahao electric system, 322 5 inch monitor (without trimmer)/328 ( with trimmer),And you can choose
top grade computer like C18/366 Computer.
2.Main motor :Dahao servo , Panasonic Servo ,Fuji Servo ,Sanyo Servo available.
3.X/Y Driver: All servo or Stepping Motor available.
4.Origian Japanese Rotary Hook
5.New style Liner driver
6.Automatic trimmer device( Adapting)
7.Needles: 3/4 Needles ,Heads: 56 -84 Heads, Embroidery Space: X /150-1100mm,Y/300-1200mm.
Accessories Included :
●Table Support and Washer of machine foot
●Exploded View of Machine
●Operation Manual
●Tool Kit.
●Automatic Bobbin Winding Machine
●Air Compressor (If Need)
