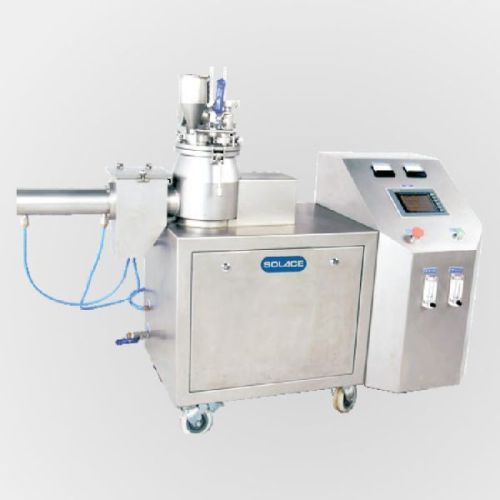

Contact SupplierThe compact model of RMG is very easy to handle. The powder is charged into the bowl for desired time and is wetted by a liquid or blinder from the top nozzle. At the same time the material is mixed by a horizontal mixer and chopped by a vertical chopping blade. The wet granules are normally discharged into a Conemil before they are dried by a fluid bed dryer.
Advantages
Main Parameter (as reference) | |||
Specification | Denomination | Model RMG-10 | Model RMG-20 |
Volume | L | 10 | 20 |
Working Volume | L | 7 | 14 |
Output Capacity | kg | 1-3 | 4-7 |
Agitator Speed | RPM | 25-500 | 25-500 |
Motor | Kw | 1.5-2.2 | 1.5-2.2 |
Chopper Speed | RPM | 100 / 3000 | 100 / 3000 |
Motor | Kw | 0.37 / 0.75 | 0.37 / 0.75 |
Dimension (L x B x H) | mm | 2000 x 1000 x 1400 | 2200 x 1200 x 1600 |
Discharge Height (h) | mm | 700 | 700 |
Weight | kg | 350 | 400 |
