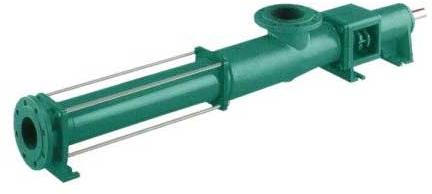

Contact SupplierKX Series Progressive Cavity Pump is of cast iron construction with various metallurgy of rotating parts like Alloy Steel, Tool Steel, SS 304 and SS 316 while KX – CF pumps are of complete SS 304 and SS 316 material of construction. Other various options of FRP / Ebonite lined housing with rotating parts in Super Alloys like Alloy 20, Hastelloy C, Hastelloy B and Titanium are available for highly corrosive applications. Shaft sealing is ensured by soft gland packing / mechanical seal. Torsion free metal bonded stator and double sealed universal joints as Pin & Bush Joints or Special designs like Gear joints or Cardon Joints as per customer requirements for longer service life and improved efficiency results in trouble free performance of the pumps.
Wettable Housing components | Cast Iron, Stainless steel |
---|---|
Rotor | Alloy Steel, Tool Steel, Stainless Steel, Alloy 20, Hastelloy C, Hastelloy B with Hard Chrome Plating |
Rotating Parts | Alloy Steel, Stainless Steel |
Stator | Natural Nitrile, Neoprene, EPDM, Hypalon, Silicone, Viton etc |
Seals | Sealing arrangement by soft gland packing or Mechanical Seal |
Capacity | 550 Cu M/Hr |
---|---|
Head | 48 Kg/sq.cm |
Temperature | Up to 200 Deg C |
Viscosity | Up to 5,00,000 CST |
Solids Handling Capacity | up to 80 mm |
