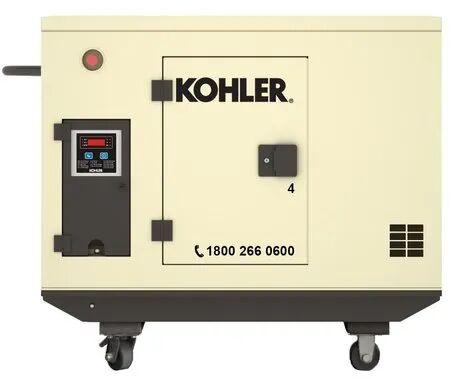

Kohler 3.5 KVA Diesel Generator

Listing ID #6595680

1.22 Lakh / Piece
Get Latest Price
  • MOQ 1 Piece
  • Brand NameKohler
  • Frequency50 Hz
  • Governor ClassClass A2
  • Recommended FuelHSD-ASTM D2
  • Supply Type Manufacturer, Retailer, Trader
  • Preferred Buyer Location India ( Karnataka )
View More Details
Send Enquiry

Company Information

  • Member Since 8 Years
  • Nature of Business Supplier
  • Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Brand Name Kohler
  • Frequency 50 Hz
  • Full load current - 1 Phase (Amp) 15.2
  • Brushless KD441-GSI2
  • Lube Oil Consumption 0.006 LPH
  • Weight, dry, max (kg) 203
  • Engine Aspiration Natural Aspiration
  • Exhaust Outlet Size At Engine Hookup, Mm (in) 40 (1.57)
  • Heat Rejected to Ambient Air 2.85 (162) Generator, kW (BTU/min)
  • Recommended Fuel HSD-ASTM D2
  • Fuel Filter : Type, Qty External , 1
  • System Type Forced Lubrication
  • Voltage Regulator Capacitor
  • Governor Class Class A2
  • Air Cleaner Type, Qty Dry, 1
  • Fuel Prime Pump Mechanical
  • Bore and Stroke, mm (in.) 86 x 76 (3.38 x 2.99)
  • Max. Power kWm (BHP) 6.1 (8.18)
  • Silencer Type, Quantity Residential, 1
  • Displacement, L (cu. in.) 0.44 (26.85)
  • Overall Size, L x W x H (mm 660
  • Starter Motor Rated Voltage VDC 12 V
  • Frequency Regulation, Steady State ISO 8528 G1
  • Bearing: Quantity, Type 1, Sealed
  • Governor Type Mechanical
  • No. of Cylinders & Arrangement 1, Vertical
  • Maximum Allowable Back Pressure, Kpa (in.hg) 5 (1.48)
  • Compression Ratio 20.3:1
  • Diesel Fuel Consumption 0.8 LPH
  • Rated Speed 3000 RPM
  • Insulation Class Class H
  • Lube Oil Type Kohler Oil

The Kohler Advantage :
  • One-stop solution for the generating system and accessories
  • Manufactured in India with global expertise
  • Portable generator set
  • Compact design with ease of maintenance
  • Maux winding provides excellent motor starting capability
  • Flexible & creative customized solutions to meet customer needs
  • Fast response time
  • One-year or 2000 hours as per standard warranty terms from date of initial startup

Special Features :
  • Natural aspirated, air cooled diesel engine with superior
  • efficiency and operating economy
  • Integral vibration isolation eliminates the need for
  • under-unit vibration spring isolators
  • Advanced Digital Controller (ADC) with 3 auto crank cycles
  • Alternator features:
  • Alternator meets Indian and international standards
  • Self-ventilated and dripproof of IP23 construction
  • Superior voltage waveform by 2/3 pitch wound stator
  • Sustained short circuit current of up to 300% of the
  • rated current for up to 20 seconds
  • Silencer located inside canopy
  • On field convertability from manual to AMF

Standard Features :
  • Engine mounted alternator
  • Single - bearing alternator with insulation Class H
  • Base frame mounted fuel tank with minimum 8 hrs running capacity
  • Dry type air filter
  • DG isolator / circuit breaker• Electric start with battery
  • Industrial grade power terminals
  • Conveniently located fuel level indicator
  • Weather proof enclosures to withstand harsh climate
  • All routine service points on one side of canopy
  • Canopy with wheels and handle• Master switch: Control On/Off
  • Event Log
  • Remote two-wire start/stop capability• One-source responsibility for generating system & accessories
  • Automatic start with programmed cranking cycle
  • Field software upgrade possibility
  • Operating temperature: -20°C to 70°C (-4°F to 158°F)
  • Storage temperature: -20°C to 70°C (-4°F to 158°F)
  • Humidity: 0-95% condensing
  • Control Panel
