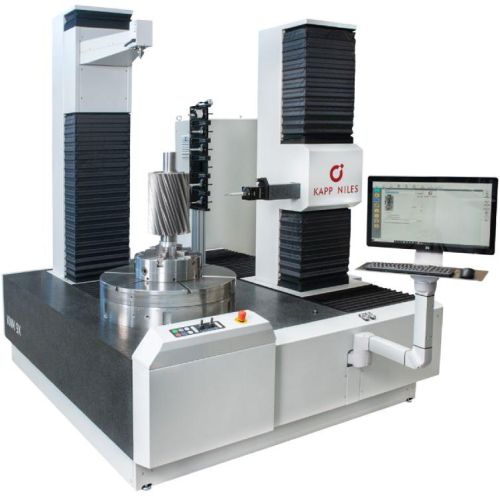

Square KNM 9X CNC Gear Measuring Equipment, Certification : CE Certified

Listing ID #6715448

4 Cr - 5 Cr / Piece

Get Latest Price

MOQ 1 Piece
Country of OriginGermany
TypeMeasuring
ShapeSquare
CertificationCE Certified
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Country of Origin Germany
Type Measuring
Shape Square
Certification CE Certified
Application Gear Testing
Brand Name KAPP NILES METROLOGY
After-Sales Service Provided Yes
Brand Kapp Niles Metrology

The X, Y- and Z-guide ways have air bearings for ultimate precision and are made of dark granite for best thermal performance and long-term stability. The machine is equipped with a high precision rotary table with air bearing and torque motor.

The solid granite machine table rests on air dampers to absorb vibrations, no separate foundation is needed.

Highlightsof high precise KNM 9X system:

Machine structure with outstanding intrinsic accuracy
Large bearing distances of guides
Large Y-axis travel range to reach also small bearing diameters
Inherently stable granite machine base on active air springs to absorb vibrations
No need for a separate foundation
Drive system close to center of gravity
Air bearings in all linear axes, no metal contact, no wear
Linear motors in X-, Y- and Z-axes
Movable tailstock, motorized (e.g. for easy and safe loading process)
High precision air bearing rotary table (diameter 800 mm) with direct drive
CAA technology for all linear axes
Easy to use operator-friendly software KN inspect

Additional Information

Payment Terms L/C
Port of Dispatch Germany
Delivery Time 3 Months

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Our values
Independence meets community spirit.
We act freely and independently. The KAPP NILES Group is family-run. This gives us a high degree of self-determination in our processes and in our actions. Respect for and with each other is a central component of our value culture and shapes our sense of community.
It is the WE that makes the difference.
Our communication and cooperation are respectful, trusting, honest and open. Only together can we achieve our goals. We are aware of this. Each individual is an important part of the whole.
Joy in innovations.
Together, we strive for the best possible results in the most diverse business areas. Each individual contributes to this in his or her role, position and tasks. We question processes, products and services in order to constantly improve ourselves.
We take responsibility.
We are not only a reliable partner for our customers, but also take responsibility in our daily activities. We look beyond the horizon. We contribute to society and to the environment. Supporting social projects, using natural resources and avoiding harmful effects on the environment are important to us.
CNC Gear Measuring Machines from KAPP NILES METROLOGY GmbH, Germany
Ultimate highly precise measurement of smaller size gears in the lab or on the shop floor - no foundation required - newly developed series of state-of-the-art measuring machines for smaller workpieces -
THE KNM 2X / 5X / 9X ANALYTICAL MEASURING MACHINES ARE DESIGNED FOR HIGH-PRECISION MEASUREMENTS OF GEARS, GEAR TOOLS AND ROTATIONALLY SYMMETRIC WORKPIECES.
All guides and base plates made of granite are extremely stable in the long-term and have identically low expansion coefficients. Air bearings with emergency operation properties ensure perfect and wearfree guides without short-term errors. Air spring elements underneath the base plates safely shield from jolts and vibrations.
