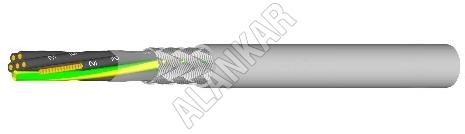

We are a famous JZ-HMH-C Control Cable Manufacturer, Exporter, and Supplier from New Delhi, India. The JZ-HMH-C Control Cable is a halogen-free flexible control cable. The core construction of JZ-HMH-C Control Cable is adapted to DIN VDE 0281 part 14 and DIN VDE 0281 part 13.
Details

• Halogen-free core flexible control cable adapted to  DIN VDE 0281 part 14 and DIN VDE 0281 part 13
• Temperature range

  • Flexing : -15^oC to +70^oC

  • Fixed installation : -40^oC to +70^oC
• Nominal voltage : U0/U 300/500 V
• Test voltage : 2000 V
• Minimum bending radius
  • Flexing approx. : 12,5x cable ø
  • Fixed installation approx. 4x cable ø
• Coupling resistance max. : 250 Ohm/km
• Bare copper, fine wire conductors, to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
• Core insulation of halogen-free compound TI6, to E DIN VDE 0281 part 14
• Black cores with white continuous numbering to DIN VDE 0293
• Green-yellow earth core in the outer layer (3 cores and above)
• Cores laid up in layers with optimal lay-length
• Separating layer
• Screen braid of tinned copper wires, coverage approx. 85%
• Halogen-free sheath compound TM7, to E DIN VDE 0281 part 14
• Jacket colour grey (RAL 7001)
