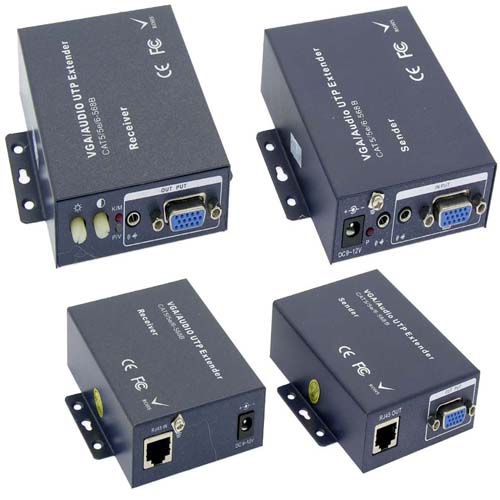

Jv06
the vga extender over cat56 with audio is used to extend transmission distances for vga signals with stereo audio up to 30,60,100,300 mtr over a single cat56 cable. Employing 15-pin hd connectors for input and output connections, the extender supports signal resolutions up to wuxga (1920x1200@60hz) and hdtvs to projectors.
Used to extend transmission distances for vga signals with stereo audio up to 1000' (300m)
uses a single cat56 cable
employs 15-pin hd connectors for input and output connections
supports signal resolution up to wuxga (1920x1200@60hz) and hdtvs to projectors
receiver features separate gain and peaking rotary switches for adjusting brightness and skew
allows you to adjust signal quality over variable cable lengths
features a 3.5mm jack for stereo audio support
rack or under-desk mountable
edid compliant
requires 5v dc supply for operation for 100 &300 mtr
plug: metal with cold anodizing rust & miss handling proof
• magnetically shield for high speed ethernet noise proof
