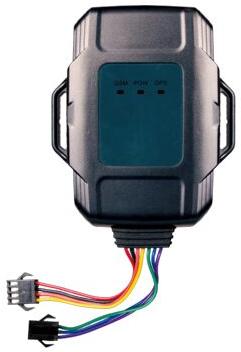

JM01 Vehicle Tracker

Listing ID #2928356

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location India ( Rajasthan only ) & All other countries

Only high-grade packaging material has been used for the safe packing of the products. Thus, we make sure that our customers will get only damage-free products from our end. We are acknowledged for....
View More Details
Send Enquiry

Company Information

  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Only high-grade packaging material has been used for the safe packing of the products. Thus, we make sure that our customers will get only damage-free products from our end. We are acknowledged for meeting the urgent requirements of the clients even on short notice as we are supported by capacious warehouse and streamlined inventory management system.
Feature :

  • Remote cut-off (petrol/power)- Compel the vehicle to stop by breaking off the fuel connection Multiple alarms- Instant alert for vibration, over speed, power off, geo-fence
  • SOS button- Thumb sized button allowing urgent call during an emergency case
  • 9-90V voltage range - Wide operating voltage applicable to all types of vehicles
  • Configurable tracking modes - Location uploaded following fixed distance, time interval, preset cornering Multiple alarms - Instant alert for vibration, over speed, power off, geo-fence
  • Vehicle battery protection - Never drain out of the battery of motorcycle for optimal protection
  • Tracked by - SMS, APP, Web - Reports location in real time through different interfaces


GSM Specification

Gsm Frequency 850/900/1800/1900 Mhz
Gprs Class 12, Tcp/Ip
Memory 32+32mb
Phase Error Rmspe<5,Ppe<20
Max Output Gsm850/Gsm900:33±3dbm
Gsm1800/Gsm1900:30±3bm
Max Frequency Error ±0.1ppm

GPS Specification

Gps Chipset Mtk High Sensitivity Chip
Frequency L1,1575.42mhz C/A Code
Gps Channel 66
Location Accuracy <10 Meters
Tracking Sensitivity -165dBm
Acquisition Sensitivity -148dBm
Ttff (open Sky) Avg. Hot Start≤1sec
Avg. Cold Start≤35sec

Functional Specification

Battery 270mah/3.7v Li-Polymer Battery
Working Voltage/Current 9-90vdc/7maï ~60vdc
Standby Time 60 Hours
Working Time 3 Hours
Operating Temperature -20oC ~ 70oC
Device Dimension 78.0(L)*41.0(W)*13.0(H)Mm
Device Weight 38g
Box Weight 190g
Box Dimension 123(L)*85(W)*49(H)Mm
