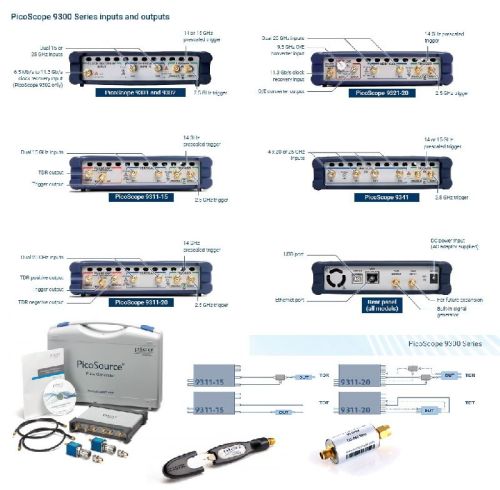

PicoScope 9300 Series -Sampling Oscilloscopes to 25 GHz with TDR/TDT and Optical models
15 to 25 GHz electrical, 9.5 GHz optical, TDR/TDT, 2-channel and 4-channel, compact, portable, USB instruments.
These units occupy very little space on your workbench and are small enough to carry with your laptop for on-site testing, but that’s not all. Instead of using remote probe heads attached to a large bench-top unit, you can position the scope right next to the device under test. Now all that lies between your scope and the DUT is a short, low-loss coaxial cable. Everything you need is built into the oscilloscope, with no expensive hardware or software add-ons to worry about.
Key specifications
-15 TS/s (64 fs) sequential sampling
-Up to 15 GHz prescaled, 2.5 GHz direct trigger and 11.3 Gb/s clock recovery
-Industry-leading 16-bit 1 MS/s ADC and 60 dB dynamic range
-Eye and mask testing to 16 Gb/s with up to 223–1 pattern lock
-Intuitive, touch-compatible Windows user interface
-Comprehensive built-in measurements, histogramming and editable data mask library
-Integrated, differential, deskewable TDR/TDT step generator
Typical applications:
-Telecom and radar test, service and manufacturing
-Optical fiber, transceiver and laser testing
-RF, microwave and gigabit digital system measurements
-Radar bands I, G, P, L, S, C, X, Ku
-Precision timing and phase analysis
-Digital system design and characterization
-Eye diagram, mask and limits test to 10 Gb/s
-Ethernet, HDMI 1, HDMI 2, PCI, SATA, USB 2.0, USB 3.0
-TDR/TDT analysis of cables, connectors, backplanes, PCBs and networks
-Optical fiber, transceiver and laser test
-Semiconductor characterization
Trigger modes:
2.5 GHz direct and up to 15 GHz prescaled trigger:
Sampling oscilloscopes accept their trigger from a separate input, either directly for repetition rates up to 2.5 GHz or via a prescaling divider input, for repetition rates up to 15 GHz (14 GHz on 15 and 20 GHz models).
Built-in 11.3 Gb/s clock data recovery trigger:
To support serial data applications in which the data clock is not available as a trigger, or for which trigger jitter needs to be reduced, the PicoScope 9302 and 9321 include a clock recovery module. This continuously regenerates the data clock from the incoming serial data or trigger signal and can do so with reduced jitter even over very long trigger delays or for pattern lock applications. A divider accessory kit is included to route the signal to both the clock recovery and oscilloscope inputs.
9.5 GHz optical model:
The PicoScope 9321-20 includes a built-in precision optical-to-electrical
converter. With the converter output routed to one of the scope inputs
(optionally through an SMA pulse shaping filter), the PicoScope 9321-20 can analyze standard optical communications signals such as OC48/STM16, 4.250 Gb/s Fibre Channel and 2xGB Ethernet. The scope can perform eyediagram measurements with automatic measurement of optical parameters including extinction ratio, S/N ratio, eye height and eye width. With its integrated clock recovery module, the scope is usable to 11.3 Gb/s.
The converter input accepts both single-mode (SM) and multi-mode (MM)
fibers and has a wavelength range of 750 to 1650 nm.
TDR/TDT analysis
PicoConnect 900 Series: the shape of probes to come:
The PicoConnect 900 Series is a range of low-invasive, high-frequency passive probes, designed for microwave and gigabit applications up to 9 GHz and 18 Gb/s. They deliver unprecedented performance and flexibility at a low price and are an obvious choice to use alongside the PicoScope 9300 Series scopes.
Features of the PicoConnect 900 Series probes
PicoSource PG900 Series differential pulse generators:
For greater versatility than a built-in signal generator can offer, you may want to separate your high-performance fast-step TDR/TDT pulse source from the sampling oscilloscope and have two instruments to use either stand-alone or together as required.
