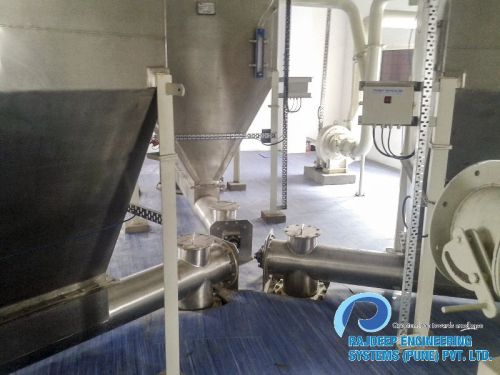

Auto Weighing and Batching System, Certification : ISO 9001:2008

Auto Weighing and Batching System, Certification : ISO 9001:2008

Listing ID #6157938

2.50 Lakh - 4 Lakh / Unit

Get Latest Price

MOQ 250000 Unit
Country of OriginIndia
TypeAuto Batching System
CertificationISO 9001:2008
ApplicationWeighing and Batching
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Country of Origin India
Type Auto Batching System
Certification ISO 9001:2008
Application Weighing and Batching
Voltage 415 V
Condition New
Power 20kw
Warranty 1year
Automation Grade Fully Automatic
Brand Name Rajdeep
Capacity 250 TPH
Frequency 50/60 Hz

Many processes required that precise quantities of ingredients be brought together to make up a specific batch or formula. This typically involves metering materials individually into a weigh hopper using a metering device such as a screw feeder, airlock, or butterfly valve.

Through many years of experience, Rajdeep has developed a unique control package, designed specifically for bulk materials. Each ingredient has fast & slow speed feed, automatic target weights set, and auto log. Multiple weigh hoppers, or loss-of-weight feeders, may also be used to formulate the batch. Liquid addition scale systems are also provided.

Electronic batching controls are custom designed for ease of operation and flexibility utilizing the latest technology available. Commercial programmable logic controllers (PLC's) are used for system management and ease of operation. A multitude of options are available for batching systems.

Features of Auto Weighing and Batching systems:

Effective design
High accuracy
Total integrated PLC control system
Customized deign with high level of flexibility

Benefits of auto weighing and batching systems:

Automated weighing and batching system are good for small as well as large operations. These can pay for itself fairly rapid through amplified productivity, more-accurate quantity of ingredients (resulting in better product quality), minimization of product loss and dirt, and decrease in the cost of materials developed in larger containers and/or volumes.

Various equipment used in weighing & batching system

Screw conveyor
Rotary airlock valve
Feed hoppers
Weighing unit
Control unit
Pneumatic activated valve(BFV)
Chemical
Construction chemical
Paint and pigment handling
Pharmaceutical
Food industry

Additional Information

Delivery Time 4-5 weeks

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Images

Company Details

Established in the year, 2000, we, 'rajdeep engineering systems (pune) pvt. Ltd.', are an iso 9001:2008 supplier, manufacturer and exporter of industrial air pollution control equipments. Further, we are known for rendering economically priced services for the same. We've got all the necessary approvals from mecon, mitcon and uhde, india. Further, we have more than 200 successful project installations and satisfied customers to our credit. We provide our clients with an unmatched range of bag filter, rotary air lock valve, lean phase pneumatic conveying system and dense phase pneumatic conveying system. Further, our clients can also avail from us, screw conveyor, centrifugal fans and cyclone separator. Faultless design, easy-to-use functionality and unparalleled performance are some of the features that distinguish our machines from those offered by others. We have two state-of-the-art manufacturing setup that's spread over a vast area of 15000 sq. Ft. And is the perfect example of a world-class production facility. This facility is equipped with technologically advanced rolling & welding machines that help us reach a production target of 80 tonnes per month. We also import many of our machines, in order to cater to the variegated requirements of our clients. All our products undergo material testing, ultrasonic testing and other stringent tests, so as to ensure that we deliver what we promise. It is the quality of our products that make these highly sought after by clients engaged in steel, petrochemical, cement and other industries. Further, our timely deliveries, transparent transactions, efficient after sales services and client-centric policies are equally responsible for our growing client base in indian subcontinent, south/west africa, and south east asia. Our policy of facilitating the clients with flexible payment modes has also gone down well with them. It has helped us add many prestigious names to our clientele. Some of our reputed clients are jindal steel, tata projects, haldia petrochemical, garden silk, praj, tata chemicals, l&t, metso ,dcw, iocl & many more. Our vision, business direction and mentoring are all part of his responsibility and so is the formulation of growth strategies. As a matter of fact, he is the one responsible for developing the brand 'rajdeep'.
