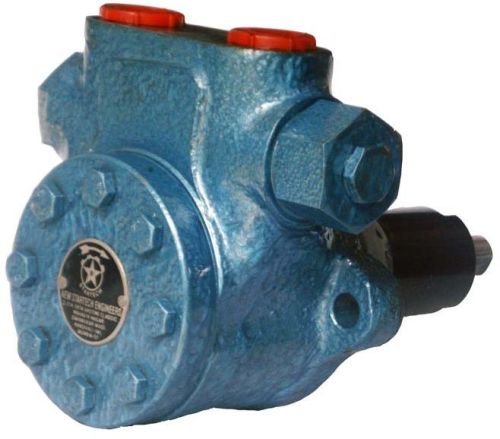

Internal Bypass Gear Pump

Listing ID #1446150

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We manufacture, export and supply precisely engineered Internal Bypass Gear Pump. Using high quality raw materials and hi-tech machines, our Internal Bypass Gear Pump is manufactured. The entire....

View More Details

Send Enquiry

Product Details

We manufacture, export and supply precisely engineered Internal Bypass Gear Pump. Using high quality raw materials and hi-tech machines, our Internal Bypass Gear Pump is manufactured. The entire manufacturing process is carried out under the supervision of experts and thus there are minimal chances of flaws. We make available NSA /NSB series pumps with PRV & external bypass arrangement. Place bulk orders for Internal Bypass Gear Pump with us!

Important Features :

Hardened & ground internals of high quality steel : Offers better wear & tear resistance.
Pump body of graded Cast Iron with additional alloying elements : Provides higher wear resistance and allows to handle high temperature fluids.
Mechanical Seals of high quality sealing faces supported by suck back system : Sustains suction capability and avoid leakages.
Shaft without any circlip groove : Delays fatigue means smooth, long trouble free operation.
Needle roller bearings (Optional) : Avoids jamming, seizure and shearing resulting in smooth & efficient operation.

Specifications

Pump Model	Inlet x Outlet Port BSP(F)	Output (LPH) AT 1440 RPM	Discharge Pressure UPTO Kg/Cm2	Pump Shaft RPM
NSAO15CX/AX	1/2” x 1/2"	150	30	1440/2800
NSAO30CX/AX	1/2” x 1/2"	300	30	1440/2800
NSAO45CX/AX	1/2” x 1/2"	450	30	1440/2800
NSAO60CX/AX	1/2” x 1/2"	600	30	1440
NSB100CX/AX	3/4” x 3/4”	1000	30	1440
NSB150CX/AX	3/4” x 3/4”	1500	30	1440
NSB200CX/AX	3/4” x 3/4”	2000	30	1440
NSB250CX/AX	3/4” x 3/4”	2500	30	1440
C : CLOCKWISE			A : ANTICLOCKWISE
X : Pump With Pressure Regulating Valve & Internal Bypass Arrangements

Note :

Output capacity is with oil of 32 cSt viscosity at 37.5° C and at 1440 RPM at 10 Kgf/Cm2
Pump model NSA015, NSA030 & NSA045 are suitable for 1440 & 2880 RPM
Pumps are available in both Clockwise(CX)and Anticlockwise(AX)direction of rotation
