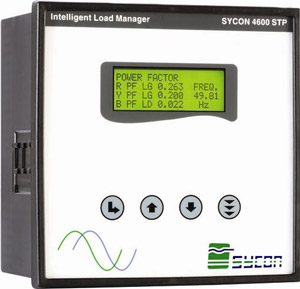

Contact SupplierWe are offering Intelligent Load Manager. General Features:
1 Alarm point and 3 tripping point (potential free).
PC interface facility with RS-485.
True RMS measurements.
Model available for LT as well as HT.
Selectable display of present & previous.
Facility for Date & time settings.
Uses advanced DSP process.
Easy readability on alphanumeric back lit LCD Display.
Low PT, CT burden.
Auto reset facility for maximum demand with programmable date & time.
Cost effective energy management solution.
Easy user interface & easy installation.
Confirms to IEC standards.
Rugged & can be used under extreme environmental condition.
1 Alarm point and 3 tripping point (potential free).
PC interface facility with RS-485.
True RMS measurements.
Model available for LT as well as HT.
Selectable display of present & previous.
Facility for Date & time settings.
Uses advanced DSP process.
Easy readability on alphanumeric back lit LCD Display.
Low PT, CT burden.
Auto reset facility for maximum demand with programmable date & time.
Cost effective energy management solution.
Easy user interface & easy installation.
Confirms to IEC standards.
Rugged & can be used under extreme environmental condition.
Display Features
Phase to neutral & phase to phase voltage.
Current of each phase.
KW of all phases & total KW.
KVA of all phases & total KVA.
KVAH of all phases & total KVAH.
KVAR of all phases & total KVAR.
PF of all phases, average PF & cumulative PF.
Electrical Specifications
Voltage Input 415V AC -15%
Current Input --5A
--1A Optional
Frequency 50Hz
Switching Contact 10 A at 250V AC
Accuracy 1 digit
Front Bezel Size 144 (L) x 144 (W) x 120 (D) mm
Panel cutout Size 138 mm X 138 mm
Weight 1.5 Kg
