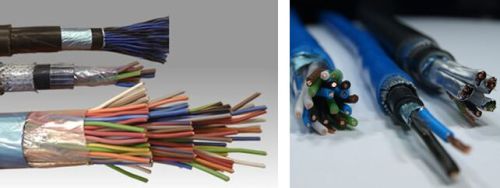

Instrumentation Cables A) PVC/PVC Overall Screened Instrument Cable BS 5308 Part 2 : Type 1 300/500v

Polyvinyl Chloride Insulated Polyvinyl Chloride Sheathed Overall Screened Instrument Cable

Description:

Single pair and multi-pair cables with copper conductor, PVC insulated, overall screened and PVC sheathed. Voltage rated at 300/500V.

Construction

Conductor:
Plain annealed/tinned circular stranded copper conductor, conform to BS 6360 / IS:8130
Insulation:
PVC (Polyvinyl Chloride) / PE
Pairing:
Two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100 mm.
Note: Two pair cables with overall screen shall have four cores laid in quad formation.
Pair identification:
Colour code as per Appendix B or as per customer specification
Cabling:
Twisted pairs are laid up together, if necessary filled with nonhygroscopic material compatible with the insulation.
Overall Screening:
Accumulated pairs screened with aluminium/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5 mm2.
Sheath:
PVC (Polyvinyl Chloride).

B) PVC/PVC Overall Screened Instrument Cable BS 5308 Part 2 : Type 1 300/500v

Polyvinyl Chloride Insulated Polyvinyl Chloride Sheathed Individual & Overall Screened Instrument Cable

Description

Multi-pair cables with copper conductor, PVC insulated, individual & overall screened and PVC sheathed. Voltage rated at 300/500V.

Construction

Conductor:
Plain annealed/tinned circular stranded copper conductor, conform to BS 6360 / IS:8130
Insulation:
PVC (Polyvinyl Chloride) / PE
Pairing:
Two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100 mm.
Note: Two pair cables with overall screen shall have four cores laid in quad formation.
Pair identification:
Colour code as per Appendix B or as per customer specification
Individual Screening:
Each pair screened with aluminium/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5 mm2.
Cabling:
Twisted pairs are laid up together, if necessary filled with nonhygroscopic material compatible with the insulation
Overall Screening:
Accumulated pairs screened with aluminium/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5 mm2.
Sheath:
PVC (Polyvinyl Chloride).

C) PVC/PVC/SWA/PVC Overall Screened Instrument Cable BS 5308 Part 2 : Type 2 300/500v

Polyvinyl Chloride Insulated Polyvinyl Chloride Bedding Steel Wire Armoured Polyvinyl Chloride Sheathed Overall Screened Instrument Cable

Description:

Single pair and multi-pair cables with copper conductor, PVC insulated, overall screened, PVC bedding, Steel wire armoured and PVC sheathed. Voltage rated at 300/500V

Construction

Conductor:
Plain annealed/tinned circular stranded copper conductor, conform to BS 6360 / IS:8130
Insulation:
PVC (Polyvinyl Chloride) / PE
Pairing:
Two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100 mm.
Note: Two pair cables with overall screen shall have four cores laid in quad formation.
Pair identification
Colour code as per Appendix B or as per customer specification
Cabling
Twisted pairs are laid up together, if necessary filled with nonhygroscopic material compatible with the insulation
Overall Screening
Accumulated pairs screened with aluminium/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5 mm2.
Bedding
PVC (Polyvinyl Chloride).
Armouring
Galvanized steel round wire over the bedding.
Sheath
PVC (Polyvinyl Chloride).

D) PVC/PVC/SWA/PVC Individual & Overall Screened Instrument Cable BS 5308 Part 2 : Type 2 300/500v

Polyvinyl Chloride Insulated Polyvinyl Chloride Bedding Steel Wire Armoured Polyvinyl Chloride Sheathed Individual & Overall Screened Instrument Cable

Description

Multi-pair cables with copper conductor, PVC insulated, individual & overall screened, PVC bedding, Steel wire armoured and PVC sheathed. Voltage rated at 300/500V

Construction

Conductor
Plain annealed/tinned circular stranded copper conductor, conform to BS 6360 / IS:8130
Insulation
PVC (Polyvinyl Chloride) / PE
Pairing
Two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100 mm.
Pair identification
Colour code as per Appendix B or as per customer specification
Individual Screening
Each pair screened with aluminium/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5 mm2.
Cabling
Twisted pairs are laid up together, if necessary filled with nonhygroscopic material compatible with the insulation
Overall Screening
Accumulated pairs screened with aluminium/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5 mm2.
Bedding
PVC (Polyvinyl Chloride).
Armouring
Galvanized steel round wire over the bedding.
Sheath
PVC (Polyvinyl Chloride)

Conductor (Copper) As per IS 8130 / IEC 60228	Stranded Conductor (ABC/ATC) (Class-II)	0.50sqmm (7/0.30mm)
		0.75sqmm (7/0.37mm)
		1.00sqmm (7/0.43mm)
		1.50sqmm (7/0.53mm)
		2.50sqmm (7/0.67mm)
	Flexible Conductor (ABC/ATC) (Class V)	0.50sqmm (16/0 .20mm)
		0.75sqmm (24/0.20mm)
		1.00sqmm (32/0.20mm)
		1.50sqmm (48/0.20mm)
		2.50sqmm (80/0.20mm)
Core Insulation	PVC Type A- 70°C	Standard Insulation Thickness: 0.60mm
	PVC Type C-85°C	Colour code as per BS 5308/1S-15541 or as per customer requirements.
	PVC Type C-1 05°C
	LOPE Insulation
	Any other grade as per customer requirement.
Units	Core	Colour code as per BS 5308/IS-1 554-I
	Pair	or as per customer requirements.
	Triad	Twisting: Minimum 12 crossover Twists/meter
	Quad	Twisting: Minimum 12 crossover Twists/meter
Unit Screen	1 layer of polyster tape	Polyster tape 25 micron thick
	1 tinned copper drain wire	0.50sqmm ATC
	1 Layer of Aluminium backed myler tape with 25% overlap for 100% coverage.	Al. Myler tape 25micron thick

	1 Layer of Polyster Tape.	Polyster tape 25 micron thick
Number of Units	Single Unit
Number of Units	Multi Unit
Communication Pair	0.50sqmm ABC insulated, Twisted Iiiir	Provided for cables with 6 Pairs/6Triads/6Quads and above.
Overall Screen	Same as for Unit screen (Cl. 4)
Inner sheath	PVC Type ST-1 70°C	Standard Thickness: 0.80mm
	PVC Type ST2 -85°C FR	Colour code: Black.
	PVC Type FRLS
Armour	Galvanised round GI wire	Standard size: 0.90 mm ,1.40 mm
		(as per customer requirement )
	Galvanised Flat GI Strips	4 x 0.80 mm
Outer Sheath	PVC Type ST-1 70°C	Thickness as per BS- 5308,
	PVC Type 8T2 -85°C FR	IS-1554 P(i)
	PVC Type FRLS	As per customer requirement
