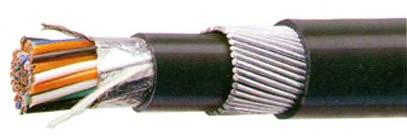

Located in Satara, Maharashtra, India, we are a diligent manufacturer and supplier of Instrumentation Cables. The Instrumentation Cables are useful in transmitting signals without any interference from external source. These cables have application in computer networking and PA Systems, Data Acquisition systems, Digital and Analog Control Systems, connections to Instruments and Measuring and Communication systems. Also, the insulation is provided in the range of general purpose PVC, heat resistant PVC, LDPE, Silicone Rubber, PTFE, etc.

Features :

• Construction : Cores, Pairs, Triads or Quads
• Voltage Grade : UP TO 1100 V
• Conductor : Electrolytic Grade Copper Bare / Tinned Solid / Stranded/flexible Conductors
• Range : 0.5 / 0.75 / 1.0 / 1.5 / 2.5 SQ MM Up To 48 Pair.
• Primary Insulaion :General Purpose Pvc / Heat Resistant Pvc / LDPE / XLPE / PTFE / Fibre Glass / FEP / Silicone Rubber
• Screening : Individual And/or Overall with Following Options Aluminum Mylar/copper Tape with Tinned Copper Drain Wire or Braided with Bare or Tinned or Nickel Plated or Silver Plated Copper
• Inner Sheath : PVC / HRPVC / FRPVC / FRLS PVC / ZHFR / LSF
• Armouring: GI ROUND WIRE / FLAT STRIP OR WIRE BRAIDING
• Outer Sheath: PVC / HRPVC / FRPVC / FRLS PVC / ZHFR / LSF
• RIP Cord: FOR EASY REMOVAL OF SHEATH
• Standards: S-5308 PART-1 & 2, BS-7655, IEC-189 (1 & 2), VDE-0815 & 0816 AND BS EN 50288
• Additional Features: Communication Pairs, BI-colour Extrusion

NOTE:- These Cables are also Designed as Data/analogue Cables
