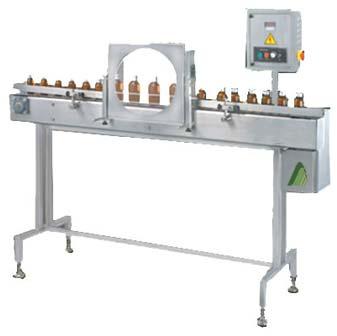

Inspection Machine with Magnifying Dome

Listing ID #3912632

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The pre-Inspection for empty bottle machine consisting of stainless steel structure with moving S.S. slat chain of width 3 ½” in the center. Structure made out of S. S. square pipe & supported....

View More Details

Send Enquiry

Product Details

The pre-Inspection for empty bottle machine consisting of stainless steel structure with moving S.S. slat chain of width 3 ½” in the center. Structure made out of S. S. square pipe & supported on adjustable bolts with magnified dome for pre-inspection. Is useful to inspect container online, without human touch which also reducing manual labours.

Operation :

The conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts (If two seated) & further on the side tables for operators sitting on either side of the table. The operators in turn visually inspect the bottles on magnifying dome to check for any partials in the liquid filled, sealed & breakage of bottle, and if found any problem manually reject the container. After inspection the bottles are ONLINE VISUAL BOTTLE INSPECTION transfered for further operation.

Salient Features :

Construction AISI S.S. 304 Quality.
Three step pulley for different speed.
Special self-aligning bearings ensure smooth and trouble free operation.
Suitable for different type of container.
S.S. Elegantly Matt Finished Body.
Reduction gears ensure jerk free and noiseless operation.
Matt Finished body.

Optional Features :

Castor Wheel with lock.

Technical Specifications :

Model	MPVBID-100	MPVBID-150
Direction of Movement**	Left to Right
Output*	Up to 100 Containers/minute	Up to 150 Containers/minute
Number of Operator	One (1x1, One Side Seated)	Two (1x2, Two Side Seated)
Doom Diameter	250 mm (1 Nos.)	250 mm (2 Nos.)
Power Characteristics**	0.5 HP / 220 Volts / 50 Hz.
Height of Conveyor **		860 mm to 910 mm
Machine Dimensions**	1880 mm (L) x 700 mm (W) x 1525 mm (H)	2440 mm (L) x 700 mm (W) x 1525 mm (H)
Case Dimensions**	2150 mm (L) x 950 mm (W) x 1750 mm (H)	2750 mm (L) x 950 mm (W) x 1750 mm (H)
Net Weight	100 Kgs.	125 Kgs.
Gross Weight	200 Kgs. Approx	250 Kgs. Approx
Input Specifications
Container Size :**	Round Shape	Ø 22 mm to Ø 100 mm * Height 58 mm to 240 mm* (Height option for other bottle height available)
Container Size :**	Flat / Square	15 mm to 100 mm (Lenght) Respectively 10 mm to 50 mm (Width) Respectively Height 58 mm X 240 mm (Height option for other bottle height available)
* Depending upon bottle size and operators' skill. ** Can be supplied as per customer requirements.
