Inspection Machine with B/W Back

Inspection Machine with B/W Back

Listing ID #3912623

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Inspection table is equipment consisting of a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have....
View More Details
Send Enquiry

Company Information

Medi Pack Process Technologies verified-icon
Sardar Patel Ring Road, Ahmedabad, Gujarat
View Number
  • Member Since 11 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

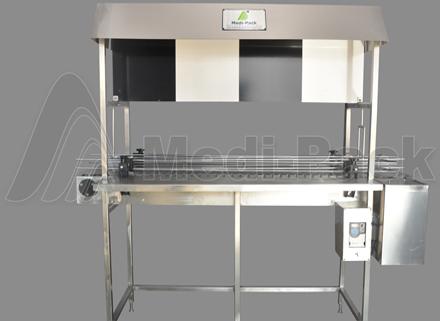

Inspection table is equipment consisting of a three-track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving S.S. slat chain. Structure made out of S. S. square pipe & supported on adjustable bolts.

Operation :
The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any particles in the liquid filled, sealed & breakage of bottle. After inspection the bottles are placed in the central track, which is transfer for labeling.

Salient Features :
  • A/c frequency variable drive.
  • Direct gear drive.
  • Length can be made as per customer requirement.
  • PVC black & white board as per GMP norms.
  • UHMW self lubrication guide below chain.
  • SS elegantly matt finishing.
  • Adjustable height of conveyor belt, to align with other machine of the line.
  • Self-alignment bearing for easy maintenance.
  • Rigid Vibration free Construction for trouble free performance.
Optional Features :
  • Castor Wheel with lock.


Technical Specifications :

Model : MPVBI - 100 MPVBI - 150
Direction of Movement** : Left to Right
Output* : Up to 100 Containers/minute Up to 150 Containers/minute
Number of Operator : Four (2x2, Two Side Seated) Six (3x2, Two Side Seated)
Power Characteristics** : 0.5 HP / 220 Volts / 50 Hz. 0.5 HP / 220 Volts / 50 Hz.
Height of Conveyor ** : 860 mm to 910 mm
Machine Dimensions** : 1880 mm (L) x 700 mm (W) x 1525 mm (H) 2440 mm (L) x 700 mm (W) x 1525 mm (H)
Case Dimensions** : 2150 mm (L) x 950 mm (W) x 1750 mm (H) 2750 mm (L) x 950 mm (W) x 1750 mm (H)
Net Weight : 200 Kgs. 275 Kgs.
Gross Weight : 425 Kgs. Approx 525 Kgs. Approx
Input Specifications
Container Size** Round Shape Ø 22 mm to Ø 100 mm ***
Height 58 mm to 240 mm***
(Height option for other bottle height available)
Flat / Square 15 mm to 100 mm (Lenght)
Respectively 10 mm to 50 mm (Width)
Respectively Height 58 mm X 240 mm
(Height option for other bottle height available
* Depending upon bottle size and operators' skill.
** Can be supplied as per customer requirements.
