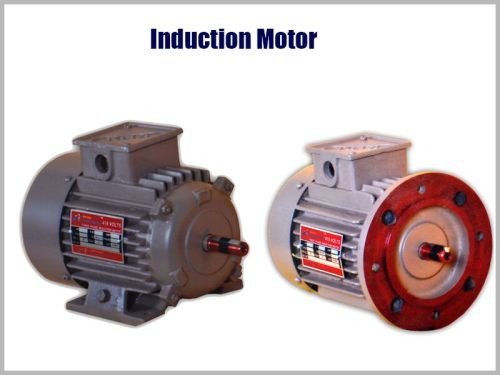

An Induction Motor is an Ac electric motor in which the electric current in the rotor needed toproduce torque is obtained byelectromagnetic inductin from the magnatic field of the sator winding.

Application of induction motor

Singal Phase

1. Washing machine
2. Refrigerators
3. Blenders
4. juice mixers. etc

Three  Phase

1. Pumps
2. Compressors
3. paper molls
4. Textils mills
5. leth machine etc
6. Low maintenance
7. Low maintenance

NOTE

1. All Dimension are in m. m.
2. 63 to Frame are without Eye Bolt.
3. Terminal box Position fir 63 to 132 Frame will be top side.
4. insulation class 'e'

RANGE OF MOTOR

1. Foot Mounted Motor : 3 Phase 0.25 H.P. to 10 H.P.
2. Foot Mounted Motor : 1 phase 0.25 H.P. to 3 H.P.
3. Flange Mounted Motor : 3phase 0.25 H,P. to 10 H.P.
4. Flange Mounted Motor : 1 phase 0.25H.P. to 3 H.P.

VOLTAG & FREQUENCY

The Motor are Designed For a Rated Voltage of 415 v For 3 Phase&230 v For 1 Phase and Frequency of 50 HZ.
The Motors Give The Rated Output For a Fluctuation Of (a)  10% in Voltage and (b) 5% In Frequency of (c) any Combination of (a) and (b).
