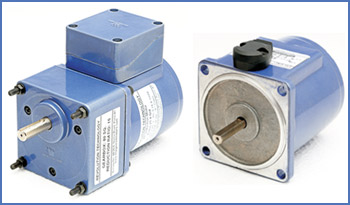

Contact Supplier Continuos Rating, TE Aluminium Die Cast Body.
• Rotates in clock wise or counter clock wise direction.Â
• Over runs after few rotations after supply is cutt off.Â
• Speeds are 2880 / 1440 and further low speeds with the gearbox.Â
• Terminal box or open lead wires for connections.
Â
Gear Boxes are sold separately.
A Sky blue colored background indicates gear shaft rotation in the same direction; a Brown background indicates rotation in the opposite direction as the motor shaft. The speed of the Gear Motor is calculated by dividing the motor’s synchronous speed (50 Hz; 1500 RPM & 60 Hz; 1800 RPM) by the ratio.
The actual speed is 2~20% less than the displayed value, depending upon the load size. Characteristics, specifications and dimensions are subjected to change without prior notice.
Output Power W | Model | Frequency Hz | Supply Voltage Volt | Current A | Starting Torque Kg.cm |
Rated Torque Kg. cm |
Rated Speed RPM | Capacitor |
25 | 80 4G IW 25 | 60 | 110 V Single Phase | 0.40 | 1.2 | 1.7 | 1450 | 2.5 |
25 | 80 4G IX 25 | 50 | 230 V Single Phase | 0.20 | 1.2 | 1.8 | 1250 | 1.5 |
25 | 80 4G IY 25 | 60 | 230 V Three Phase | 0.21 | 2.0 | 1.7 | 1450 | ----- |
25 | 80 4G IY 25 | 50 | 230 V Three Phase | 0.20 | 1.9 | 1.6 | 1350 | ----- |
25 | 80 4G IZ 25 | 50 | 415 V Three Phase | 0.15 | 1.5 | 1.7 | 1350 | --- |
RPM | 500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
Output Torque | 5 | 6 | 8.3 | 10 | 12 | 15 | 21 | 25 | 30 | 41 | 48 | 58 | 72 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
RPM | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
Output Torque | 4 | 5 | 7 | 8.3 | 10 | 12 | 17 | 22 | 25 | 31 | 37 | 45 | 56 | 68 | 80 | 80 | 80 | 80 | 80 | 80 |
