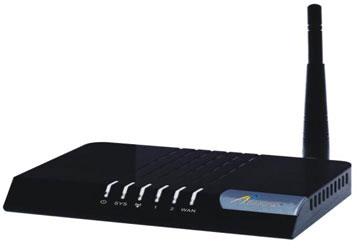

INDOOR ROUTER

Listing ID #3881480

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

GENERAL General Standard 3GPP Release 9 CAT 4   Ethernet Interface Four Ports, auto MDX, auto sensing 10/100 Mbps, RJ45 ports   Operation modes Time Division Duplex TDD   QoS QCI -....
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

GENERAL
General Standard
3GPP Release 9 CAT 4



Ethernet Interface
Four Ports, auto MDX, auto sensing 10/100 Mbps, RJ45 ports



Operation modes
Time Division Duplex TDD



QoS
QCI - Throughput expectations, Packet error loss, delay, and variation in delay (Jitter.)







SYSTEM
CPU
300 Mhz or better



Flash / SDRAM
4/16 MB







NETWORKING
Networking
Built-in DHCP client and server ,Configurable DHCP option 60 , Static route, NAT/PAT, DMZ, DHCP Client/Server/Relay, DNS Proxy, DDNS



VPN
PPTP/L2TP/IPSec pass-through Pass through



Test
PING function and Trace Route function



VLAN
VLAN Support; Management VLAN







MANAGEMENT
NMS
CENTRALISED MANAGEMENT SYSTEM for Monitoring, Configuration and Software Upgrade



Management – Device
HTTP & HTTPS Web-based GUI, Telnet, SSH, SSH2 Management, button for factory reset,



SNMP
SNMP V1 & V2, SNMP traps for RSSI / Signal Quality Degradation, Interference, Congestion, Packet Drop



Firmware Upgrade
Automated centralised Firmware Upgrade & WebGUI manual upgrade; Keep setting when Firmware Upgrade



LED indication
Power, Ethernet , Wireless



Security Functions
Stateful Packet Inspection, Packet filtering, Denial Of Service protection, Management



Authentication
PAP, CHAP







ETHERNET INTERFACE
Ethernet Connectors
RJ-45 Jacks, 4 Ports 10/100 Base-TX with Auto-MDIX Port



Standards
IEEE Std.802.2 10BASE-T 10Mbps, Half/Full Duplex;
IEEE Std.802.23u 100BASE-TX, 10/100Mbps, Half/Full Duplex;
IEEE Std.802.3x Flow control and Back-pressure.



Surge Protection
Protection against initial ESD/EFT Transient Suppression



Protocols
CSMA/CD



Technology
Store & Forward switching architecture



Network Cable
2-Pair UTP/STP Cat 5 24AWG Cable



LED’s
Link/Activity per Ethernet Port



Max Packet size supported
1536 bytes







WLAN
WLAN
MAC Address Filtering, WEP, WPA, IEEE 802.1X



Standard
IEEE802.11n, backward compatible with 802.11b/g



Encryption
WEP, WPA, WPA2



Channels
11 Channels (US, Canada), 13 Channels (Europe, Australia), 14 Channels (Japan)



WLAN Data Rate
Upto 300 Mbps







RADIO
Number of Radio
TD-LTE Radio



Frequency Range
2300 - 2400 Mhz



Channel Bandwidth
Bandwidth 5MHz/10MHz/15MHz/20MHz Support



RF transmission power
23 dBm



Receiver Sensitivity
-94 dBm



MIMO capability
1 T x 2 R







ANTENNA
Internal Antenna gain
2 dBi or More



Internal Antenna Polarisation
Multipolarised Software Controlled Manual/Auto mode



MIMO capability
1 (Optional)







POWER
Power options
100-270 V 50/60 Hz, Indian PIN type
powering through DC power



Power Method
DC Power Supply



Max Power Consumption
8 Watts



Power Supply
12V, 1A (12 Watts) DC External Adapter







PHYSICAL
Physical Dimension/ Form factor
Table top with in-built antenna



Weight
< 600 g



Operating temperature
(0 to 50 deg cent) Outdoor Temperature



Humidity (Specify supported value)
5 to 95% Non Condensing







ENVIRONMENT PROTECTION
Compliances
WEEE, EN 60950,CE mark, RoHS Directive 2002/95/EC Other market specific certification upon requests



Shock and Vibration
ETSI300-0110-1.4



Enclosure Characteristics



Plastic




Company Details close-icon

Telenet Systems Pvt Ltd was founded in 1990, Head Quartered in Mumbai, India. Telenet has been in the business of Designing, Developing, Manufacturing, and Marketing Telecom and Networking devices focused on Customer Premises Equipments (CPE's). Telenet is an IS0 9001: 2008 Certified organization with Strong technical team with core expertise in RF, Communications and Networking. Telenet has over two decade’s years of rich and vast experience of networking research, telecom business and system software development backed by strong After Sales Support Systems. Now Telenet is focused in expanding the market and product portfolio through Wireless Devices. The company’s focus in Wireless Devices is on the 4G Technologies, namely LTE, and carrier Wi-Fi.
Telenet Systems designs, develops, and manufactures telecommunication equipment with focus on the development of products that enable broadband communications to the home and business enterprise. Our expertise in RF, communication protocols, design of programmable Digital Signal Processors, algorithms, analog and mixed-signal electronics, and systems has enabled us to deliver market-leading solutions.
Telenet key strengths are Products with high demand, in-house R&D team, manufacturing expertise, in-depth knowledge of protocols, and standards from ITU & ETSI, anticipation of technology trends, knowledge of mixed signal, embedded systems, and timely market entry. The focus is now set on becoming a high volume producer. Our latest endeavor is to introduce market leading CPE/Device solutions in the latest generation of Wireless Products through 4GLTE & Wi-Fi platforms.
Over the last two decades Telenet has developed, manufactured many products of different flavors. Some of the note worthy developments have been
Digital Loop Carrier systems,
G.SHDSL systems,
Digital Pair Gain Systems,
Change Number Announcing Systems,
Auto Call Distributor systems,
Voice & Data Multiplexer systems,
ISDN NT1 and range of Products
ADSL2+ Routers,
Wi max CPE
Ethernet Switches
Protocol Converters
